iCESugar-nano FPGA Development Board
$21.5000
In stock
SKU
MIC-05-008
Volume discounts:
- +25 4 % $20.6600
- +50 6 % $20.2500
- +100 8 % $19.8300
- +300 10 % $19.4100
- +500 12 % $18.9900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Sipeed Tang Nano 9K FPGA Development Board Previous

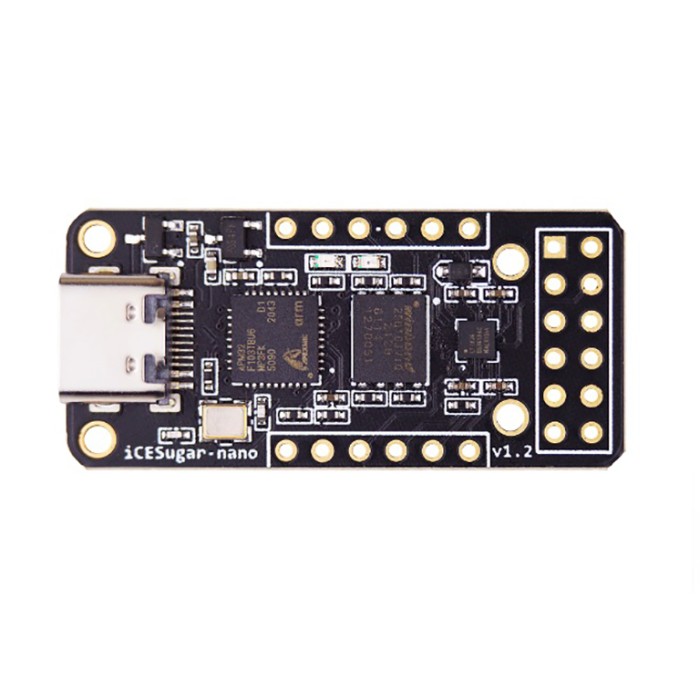

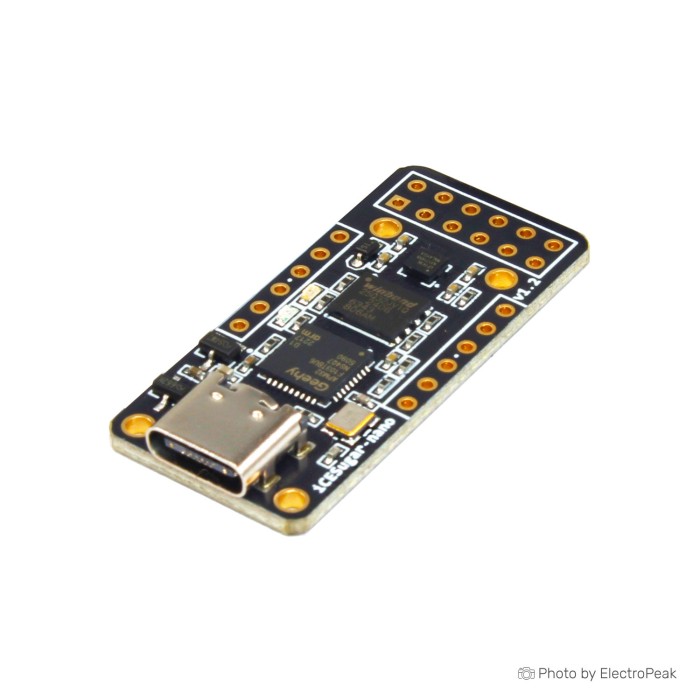

iCESugar-nano FPGA Development Board is an open-source FPGA development board based on Lattice iCE40LP1k-CM36. It is fully supported by the open source toolchain yosys, nextpnr, and icestorm. The board exposes its IO through standard PMOD connectors and includes the iCELink on-board debugger. Drag-and-drop programming is supported through the virtual disk workflow. A USB Type-C connection provides power and communication. It is designed for FPGA development and digital hardware projects.
Features of iCESugar-nano FPGA Development Board - Lattice iCE40LP1k-CM36
- Open-source FPGA development board
- iCELink on-board debugger
- Drag-and-drop programming
- USB Type-C connection
- Standard PMOD IO access
Specifications of iCESugar-nano FPGA Development Board - Lattice iCE40LP1k-CM36
- FPGA chip: Lattice iCE40LP1k-CM36
- FPGA chip: Lattice iCE40LP1k
- 1280 LUT
- 8KB SRAM
- PLL
- iCELink
- One dual-row PMOD connector (2×6 pin)
- Two single-row PMOD connectors (1×6 pin)
- 2MB SPI Flash
- W25Q16 SPI Flash
- USB Type-C
- Open source toolchain support: yosys
- Open source toolchain support: nextpnr
- Open source toolchain support: icestorm
- 14 usable IOs
- Dimensions: 40x20x5mm
How to Use iCESugar-nano FPGA Development Board - Lattice iCE40LP1k-CM36
- Connect the board with a USB Type-C cable.
- Program the FPGA using the iCELink drag-and-drop method.
- Use the PMOD connectors for IO access.
More Info
- Supports development with an open source FPGA workflow.
- Provides direct connection to the FPGA through USB.
