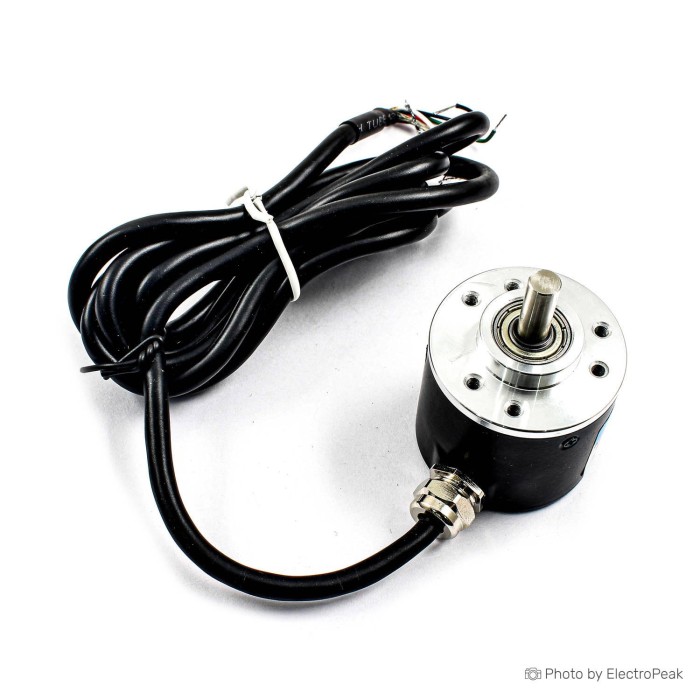

HN3806 Photoelectric Rotary Encoder - 400 P/R, 2-Phase
$9.9500
In stock
SKU
SEN-23-006
Volume discounts:
- +25 4 % $9.5200
- +50 6 % $9.3100
- +100 9 % $9.0900
- +300 11 % $8.8800
- +500 13 % $8.6700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HN3806 Photoelectric Rotary Encoder - 600 P/R, 2-Phase Previous
HN3806 Photoelectric Rotary Encoder is a two-phase incremental rotary encoder for position and rotational speed measurement. It converts angular position into an AB two-phase rectangular orthogonal pulse output. This rotary encoder supports measurement of angle, speed, length, and acceleration. It uses an NPN open-collector output type and is suitable for rotation detection in electronics and automation applications. For correct use, all data lines should be connected to VCC through a resistor. A resistor in the 1 to 100 kOhm range is suitable.
Features of HN3806 Photoelectric Rotary Encoder - 400 P/R, 2-Phase
- Two-phase incremental output
- AB rectangular orthogonal pulses
- NPN open-collector output
- 400 P/R resolution
- 30KHz response frequency
Specifications of HN3806 Photoelectric Rotary Encoder - 400 P/R, 2-Phase
- Model: HN3806-AB
- Pulse Number: 400
- Power Source: DC 5-24V
- Shaft Diameter: 6mm
- Outer Diameter: 38mm
- Output: AB 2phase output rectangular orthogonal pulse circuit
- Output Type: NPN open-collector output type
- Maximum Mechanical Speed: 5000 R / min
- Response Frequency: 30KHz
- Cable Length: 2 meter
How to Use HN3806 Photoelectric Rotary Encoder - 400 P/R, 2-Phase
- Connect the red wire to VCC power + and the black wire to GND.
- Connect the green wire to A phase and the white wire to B phase.
- Use resistors between the data lines and VCC for proper operation.
More Info
- Green wire: A phase
- White wire: B phase
- Red wire: Vcc power +
- Black wire: V0
| Operating Voltage (V) | 5-24V DC |
|---|---|
| Dimensions (mm) | Outer diameter: 38 mm, Height: 55 mm |
| Output Type | Digital |
| Resolution | 400 P/R |
| Number of Axes | 2-axis |
| Sampling Rate (Hz) | 30 kHz |
| Sensor Type | Optical Rotary Encoder |
| Measurement Principle | Optical |
| Shaft Diameter (mm) | 6 mm |
