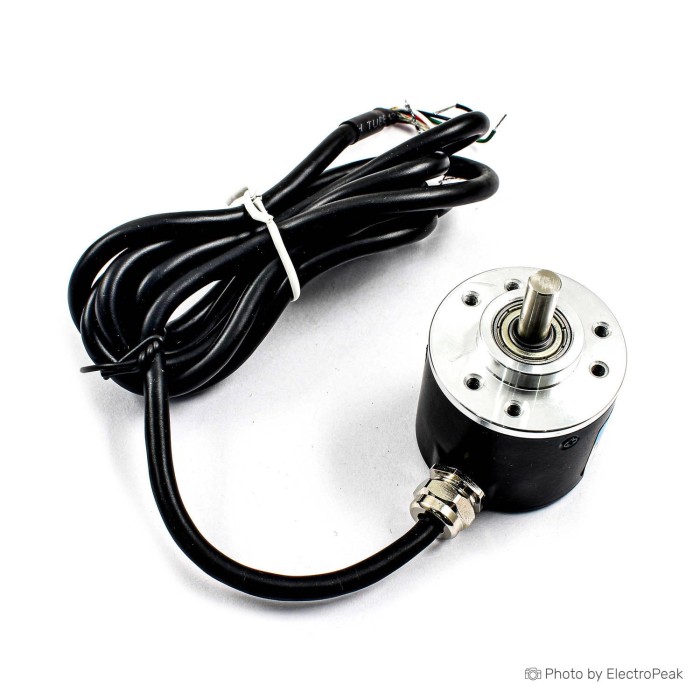

HN3806 Photoelectric Rotary Encoder - 100 P/R, 2-Phase
$11.5000
In stock
SKU
SEN-23-004
Volume discounts:
- +25 4 % $10.9900
- +50 7 % $10.7400
- +100 9 % $10.4800
- +300 11 % $10.2300
- +500 13 % $9.9800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HN3806 Photoelectric Rotary Encoder - 200 P/R, 2-Phase Previous
HN3806 Photoelectric Rotary Encoder is an AB two-phase incremental shaft encoder for rotational position and speed measurement. It uses optical sensing technology and produces a rectangular orthogonal pulse output. The encoder is designed for measuring angle, speed, length, and acceleration. It features an NPN open-collector output type and supports a DC 5-24V power source. The cable connection includes four color-coded wires for A phase, B phase, power positive, and power negative. For proper operation, the data lines should be connected to VCC through a resistor in the 1 to 100 kΩ range. The AB two-phase output should not be connected directly to VCC.
Features of HN3806 Photoelectric Rotary Encoder
- AB two-phase incremental output
- Optical sensing technology
- NPN open-collector output
- 100 pulses per revolution
- DC 5-24V power source
- 5000 R/min maximum mechanical speed
- 30KHz response frequency
- 2 meter cable length
Specifications of HN3806 Photoelectric Rotary Encoder
- Model: HN3806-AB
- Pulse Number: 100 / 200 / 360 / 400 / 600 (Optional)
- Power Source: DC 5-24V
- Shaft Diameter: 6mm
- Outer Diameter: 38mm
- Output: AB 2phase output rectangular orthogonal pulse circuit
- Output Type: NPN open-collector
- Maximum Mechanical Speed: 5000 R / min
- Response Frequency: 30KHz
- Cable Length: 2 meter
- Green Wire: A phase
- White Wire: B phase
- Red Wire: Vcc power +
- Black Wire: V0
- Data Line Resistor Range: 1 to 100 kΩ
How to Use HN3806 Photoelectric Rotary Encoder
- Connect the power wires to DC 5-24V.
- Wire the green lead to A phase and the white lead to B phase.
- Connect the data lines through a resistor to VCC.
- Keep the AB two-phase output from being connected directly to VCC.
More Info
- Photoelectric incremental rotary encoder design
- Suitable for position and speed measurement
- Used for angle, length, and acceleration measurement
- Cable wiring includes four color-coded leads
| Operating Voltage (V) | 5-24V DC |
|---|---|
| Dimensions (mm) | 38mm x 55mm |
| Output Type | Digital |
| Resolution | 100 PPR |
| Number of Axes | 1-axis |
| Sampling Rate (Hz) | 30 kHz |
| Push Button | No |
| Sensor Type | Optical Rotary Encoder |
| Measurement Principle | Optical |
| Shaft Diameter (mm) | 6mm |
