Photoelectric Speed Sensor Encoder
$3.7700
In stock
SKU
SEN-23-003
Volume discounts:
- +25 4 % $3.6100
- +100 6 % $3.5400
- +300 8 % $3.4600
- +500 10 % $3.3800
- +1000 12 % $3.3000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HN3806 Photoelectric Rotary Encoder - 100 P/R, 2-Phase Previous

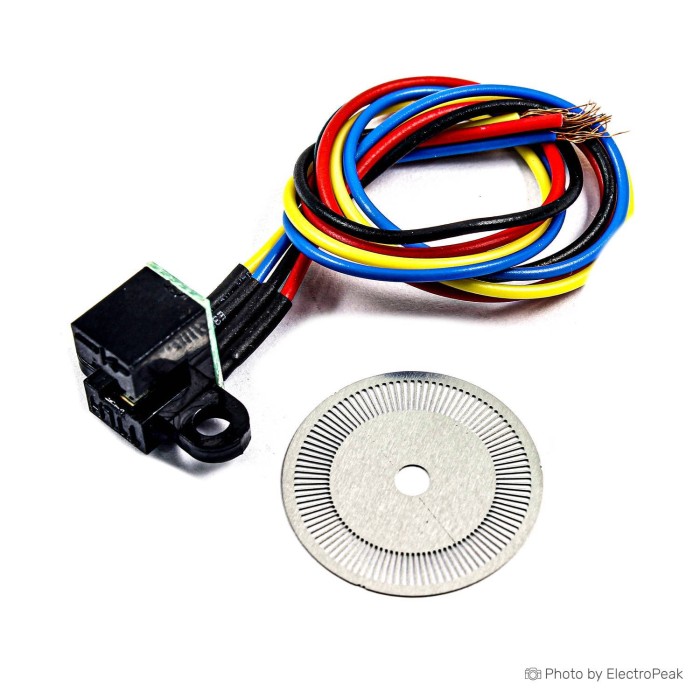

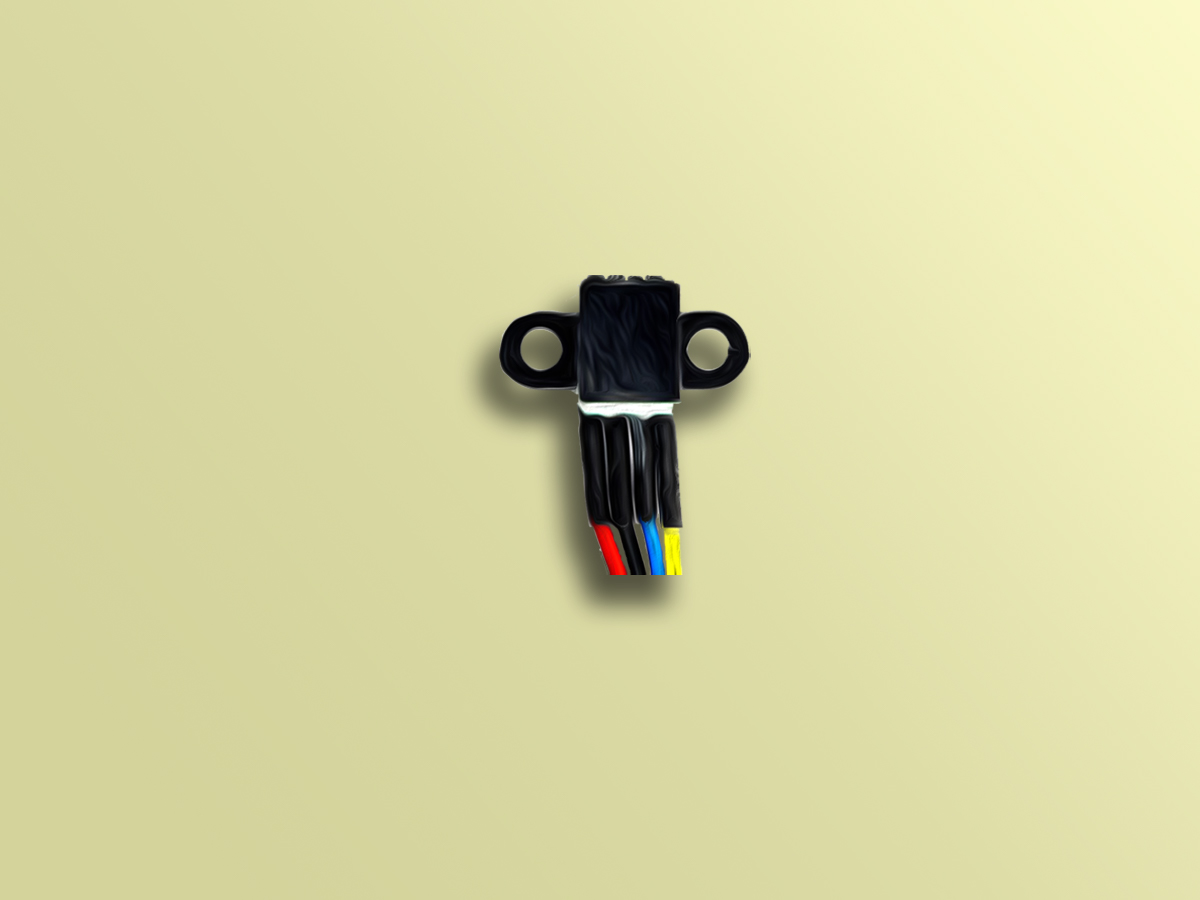

The Photoelectric Speed Sensor Encoder is a photoelectric encoder disc designed for converting motion into an electrical signal. It is used for applications that require speed and position measurement. The encoder provides square wave output signals and a 5Vp-p two-quadrature signal output. It is made of steel and uses a 5V supply voltage. The wiring includes red for positive supply, black for negative supply, yellow and blue for the output signal.
Features of Photoelectric Speed Sensor Encoder - 100 Lines, 5V
- 100-line encoder disc
- Square wave output signal
- 5Vp-p two quadrature signal
- Steel material
- Laser cutting production process
Specifications of Photoelectric Speed Sensor Encoder - 100 Lines, 5V
- Number of slots: 100 lines
- Outer diameter: 22mm
- Hole diameter: 3.0mm
- Thickness: 0.2mm
- Material: Steel
- Supply voltage: 5V
- Red wire: Positive supply
- Black wire: Negative supply
- Yellow and blue wires: Output square wave signal (5Vp-p)
- Output signal: 5Vp-p two quadrature signal
- Production process: Laser cutting
- On the tube Manufacturer: Original
How to Use Photoelectric Speed Sensor Encoder - 100 Lines, 5V
- Connect the red wire to the positive supply.
- Connect the black wire to the negative supply.
- Use the yellow and blue wires for the output signal.
More Info
- Encoder discs convert mechanical motion into an electrical signal.
- Suitable for speed and position measurement applications.
| Interface Type | Digital, Analog |
|---|---|
| Operating Voltage (V) | 5V |
| Dimensions (mm) | Outer Diameter: 22mm, Hole Diameter: 3.0mm, Thickness: 0.2mm |
| Output Type | Digital |
| Resolution | 100 lines |
| Sensor Type | Optical Rotary Encoder |
| Measurement Principle | Optical |
| Material | Steel |
