HC-020K Motor Speed Measuring Sensor Module
$0.2900
In stock
SKU
SEN-23-017
Volume discounts:
- +100 3 % $0.2800
- +1000 7 % $0.2700
- +10000 10 % $0.2600
HC-020K Motor Speed Measuring Sensor Module is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Hall Speed Encoder for DC Motor Previous

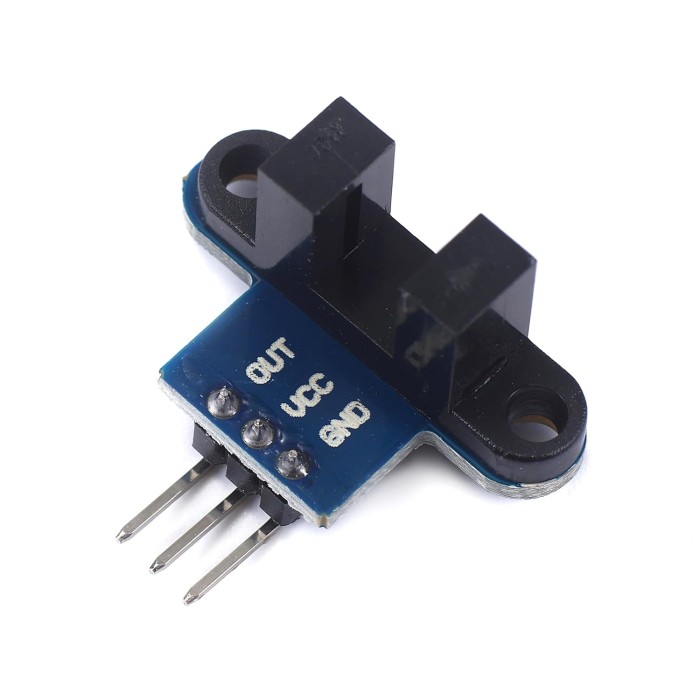

The HC-020K Motor Speed Measuring Sensor Module is a compact infrared sensor module for detecting object passage through a slot. It produces a stable digital pulse signal for motor speed and distance measurement. This sensor is suited for robotics, motor control, and encoder wheel systems. The slot-type photoelectric design supports infrared interrupt detection. The module includes a Schmitt trigger for pulse stabilization.
Features of HC-020K Motor Speed Measuring Sensor Module
- Compact infrared sensing
- Stable digital pulse output
- Slot-type photoelectric detection
- Schmitt trigger stabilization
- M3 screw-hole mounting
Specifications of HC-020K Motor Speed Measuring Sensor Module
- Operating Voltage: 3.3V-5V
- Output Type: Digital pulse (0 or 1)
- Detection Method: Infrared interrupt
- Sensor Type: Slot-type photoelectric sensor
- Slot Width: 5.9mm
- Built-in Features: Schmitt trigger for pulse stabilization
- Mounting: M3 screw holes on both ends
- Output Interface: OUT pin (digital)
- Dimensions: ---
How to Use HC-020K Motor Speed Measuring Sensor Module
- Mount the module using the M3 screw holes on both ends.
- Connect the OUT pin as the digital output signal.
- Power the module within the 3.3V-5V range.
More Info
- Datasheet: Not available.
- Designed for slot-based object detection and pulse output.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.3 - 5 V |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Sensor Type | Optical Rotary Encoder |
| Measurement Principle | Infrared |
| Chipset | HC-020K |
