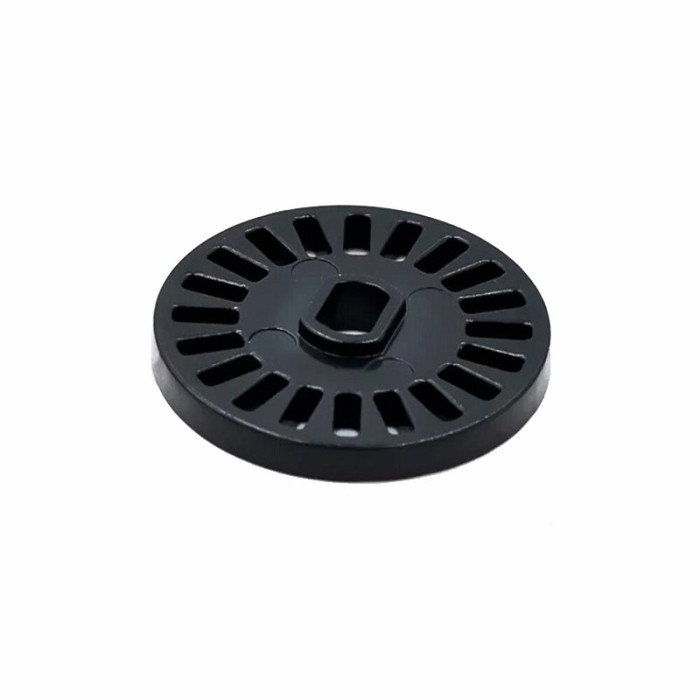

Speed Measuring Code Disc- 20 GRID
$0.0550
In stock
SKU
SEN-23-016
Speed Measuring Code Disc- 20 GRID is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HC-020K Motor Speed Measuring Sensor Module Previous
The Speed Measuring Code Disc – 20 GRID is designed for precise speed measurement in straight bar-type reduction motors. It calculates distance and movement speed by counting the number of spaces after rotation. This high-precision laser-processed code disc is ideal for TT motors and reduction current systems.
Specifications of Speed Measuring Code Disc – 20 GRID
- Name: Speed code disc
- Number of Spaces: 20
- Diameter: 26mm
- Thickness: Approximately 3.6mm
- Center Aperture: Approximately 35 x 5.4mm
- Material: Plastic
- Purpose: Suitable for TT motors and reduction current applications
Development Resources of Speed Measuring Code Disc – 20 GRID
Datasheet: Not available.
| Dimensions (mm) | 26 mm |
|---|---|
| Mounting Type | Welded to motor pins or screw fixed to motor end |
| Resolution | 20 Pulses |
| Sensor Type | Optical Rotary Encoder |
| Measurement Principle | Optical |
| Material | Plastic |
