Hall Speed Encoder for DC Motor
SAVE
Out of stock
Only %1 left
SKU
SEN-23-018
Shop with confidence Learn More
CJMCU-111 Rotary Encoder Switch Module Previous

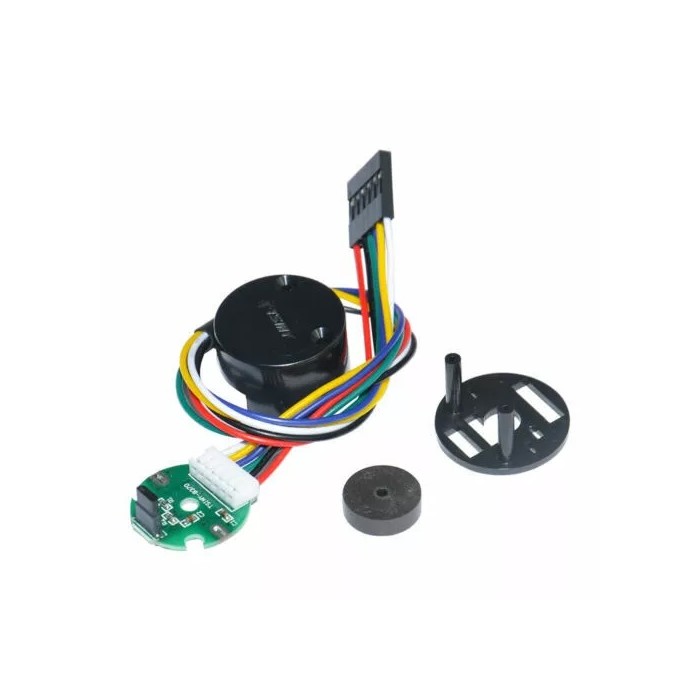

The Hall Speed Encoder for DC Motor is a compact incremental Hall-type encoder designed to provide accurate speed and position feedback for DC motors. It supports various motor types including JGB37-555, JGA25-370, JGB37-3530, and JGB37-520. With accuracy options of 12CPR, 13CPR, and 16CPR, it delivers stable performance for applications such as robotics, automation, and motor control. The encoder outputs dual-phase signals with a 90° phase difference for precise motion detection.
Specifications of Hall Speed Encoder for DC Motor
- Motor Compatibility: JGB37-555 / JGA25-370 / JGB37-3530 / JGB37-520
- Working Voltage: 3.3V ~ 5V
- Encoder Type: Incremental Hall type
- Accuracy: 12CPR / 13CPR / 16CPR (depending on model)
- Output Interface: 2-channel (A, B) with 90° phase difference
- Interface Type: 4P or 6P DuPont wire, 2.54mm pitch
- Installation: Welded to motor pins or screw fixed to motor tail (depending on motor type)
- Temperature Range: 0°C ~ 85°C
- Shaft Diameter: 2mm (GA25) / 3.175mm (GB37, 3530/520, 555)
- With Magnetic Shielding Ring: Available only on hollow magnetic ring versions
Datasheet of Hall Speed Encoder for DC Motor
Datasheet: Not available
| Interface Type | DuPont 4P or 6P wire, 2.54mm pitch |
|---|---|
| Operating Voltage (V) | 3.3V ~ 5V |
| Operating Temp (°C) | 0 to 85°C |
| Mounting Type | Welded to motor pins or screw fixed to motor end |
| Output Type | Digital |
| Accuracy | 12CPR / 13CPR / 16CPR |
| Push Button | No |
| Sensor Type | Magnetic Encoder |
| Measurement Principle | Magnetic Induction |
| Shaft Diameter (mm) | 2mm (GA25) / 3.175mm (GB37, 3530/520, 555) |
