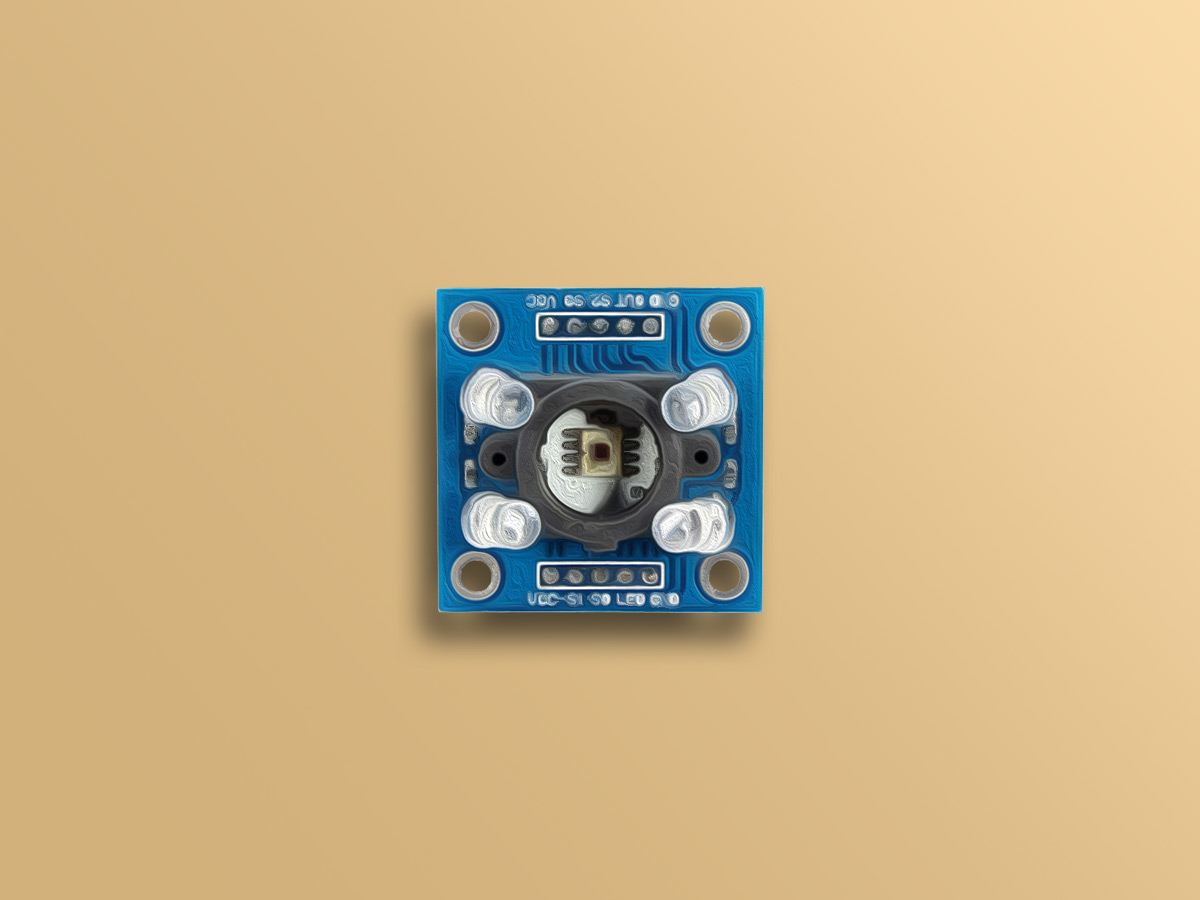

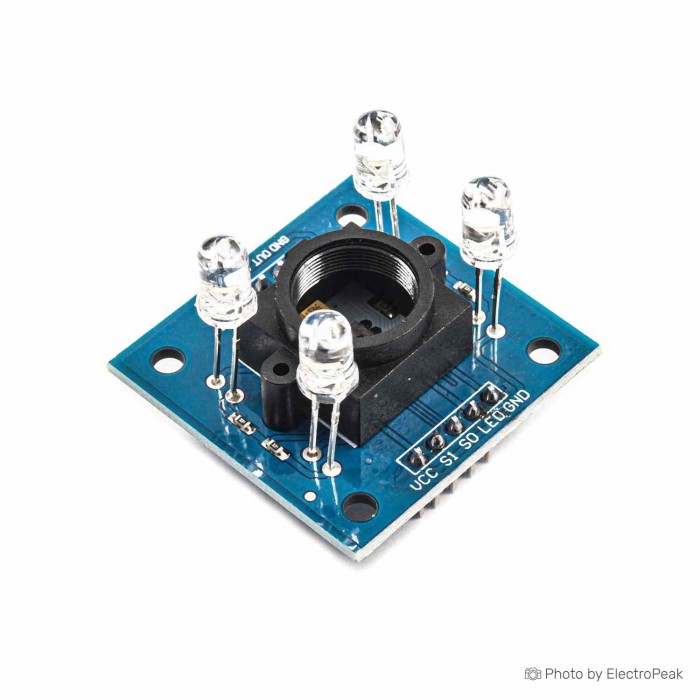

GY-31 TCS3200 Color Recognition Sensor Module
$3.2500
In stock
SKU
SEN-11-058
Volume discounts:
- +25 4 % $3.1200
- +100 6 % $3.0500
- +300 8 % $2.9800
- +500 10 % $2.9100
- +1000 12 % $2.8500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare 5 Megapixel Raspberry Pi Camera Board Fisheye Lens Previous
GY-31 TCS3200 Color Recognition Sensor Module is a color sensor module based on the TCS3200 chip. It is an upgraded version of the TCS230 and is designed for detecting and measuring a wide range of visible colors. The module uses a programmable current-to-frequency converter in an integrated CMOS circuit. It includes adjustable silicon photodiodes and can be used for color detection in dark conditions. This color sensor module can be connected directly to a microcontroller, Arduino, Raspberry Pi, and similar systems.
Features of GY-31 TCS3200 Color Recognition Sensor Module - 3-5V, 1cm
- TCS3200 chip-based design
- Upgraded TCS230 version
- Visible color detection
- Programmable current-to-frequency conversion
- Adjustable silicon photodiodes
- Direct microcontroller connection
- Color detection in dark conditions
- 4 clear white LEDs
- Static color detection
Specifications of GY-31 TCS3200 Color Recognition Sensor Module - 3-5V, 1cm
- Model: GY-31
- Chip: TCS3200
- Power Supply: 3-5V DC
- Output Frequency Voltage: 0 to 5V DC
- Current: 25 mA at 5V when LED is on
- Operating Temperature: -45 to +85 degrees Celsius
- Best Detection Distance: 10 mm
- 4 clear white LEDs
- Static detection of the measured object color
How to Use GY-31 TCS3200 Color Recognition Sensor Module - 3-5V, 1cm
- Connect the module to a microcontroller or compatible board.
- Apply a 3-5V DC power supply.
- Place the target object within the 10 mm detection distance.
- Read the sensor output for color measurement.
More Info
- Suitable for color recognition projects.
- Supports direct integration in electronics and robotics systems.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3-5V DC |
| Operating Current (mA) | 25 mA at 5V (when LED is on) |
| Operating Temp (°C) | -45 to +85 °C |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Chipset | TCS3200 |
| Qty | 1 |
| Sensor Type | Color Sensor |
| Output Interface | Digital |
| Application | Ambient light sensing and calibration, Color matching, Color sorting |
