Waveshare 5 Megapixel Raspberry Pi Camera Board Fisheye Lens
$30.5000
In stock
SKU
MIN-01-086
Volume discounts:
- +10 3 % $29.5100
- +25 5 % $29.0100
- +50 7 % $28.5100
- +100 8 % $28.0200
- +300 10 % $27.5200
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Infrared Camera Light for Raspberry Pi Previous

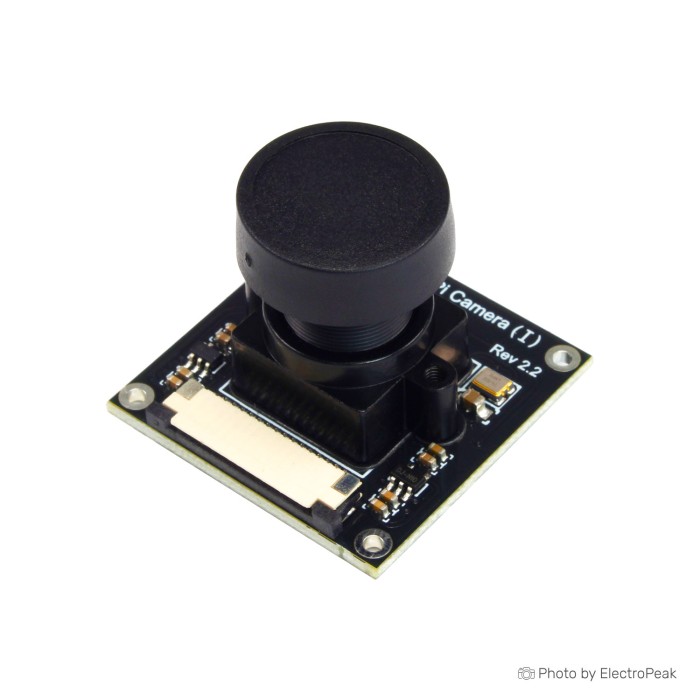

The Waveshare 5 Megapixel Raspberry Pi Camera Board Fisheye Lens is a Raspberry Pi camera module designed for high-resolution imaging and wide-angle capture. It uses an OV5647 sensor and a fisheye lens to provide a 170 degree field of view. The camera offers 2592x1944 image resolution and supports video recording in 1080p30, 720p60, and 640x480p60/90. It operates at 3.3V DC and measures 32x32 mm. The board is intended for Raspberry Pi imaging projects that need compact dimensions and wide coverage.
Features of Waveshare 5 Megapixel Raspberry Pi Camera Board Fisheye Lens
- 5 megapixel camera module
- OV5647 sensor
- Fisheye lens design
- 170 degree field of view
- High-resolution image capture
- Multi-mode video recording support
- Compact 32x32 mm board
Specifications of Waveshare 5 Megapixel Raspberry Pi Camera Board Fisheye Lens
- Camera resolution: 5 megapixel
- Image resolution: 2592x1944 pixels
- Sensor: OV5647
- Working voltage: 3.3V DC
- Field of view: 170 degree
- Focal length: 1.55 mm
- CCD size: 0.25 inch
- Video recording support: 1080p30, 720p60, 640x480p60/90
- Dimensions: 32x32 mm
How to Use Waveshare 5 Megapixel Raspberry Pi Camera Board Fisheye Lens
- Connect the camera board to the Raspberry Pi.
- Use the camera in your imaging or video project.
More Info
- Waveshare branded camera board
- Fisheye lens for wide-angle imaging
- Suitable for Raspberry Pi camera projects
| Platform | Raspberry Pi 3,Raspberry Pi 4,Raspberry Pi 5 |
|---|---|
| Interface Type | MIPI |
| Operating Voltage (V) | 3.3V |
| Dimensions (mm) | 32x32 mm |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Resolution | 5 Megapixel |
| Pixel Resolution | 5MP |
| Field of view angle (degrees) | 170° |
| Connector | FPC/FFC |
| Chipset | OV5647 |
| Qty | 1 |
| Sensor Type | CMOS |
| Output Interface | Digital |
| Application | Imaging and surveillance projects,Robotic systems,Augmented reality projects,Security and surveillance systems |
| Focal Length | 1.55 mm |
