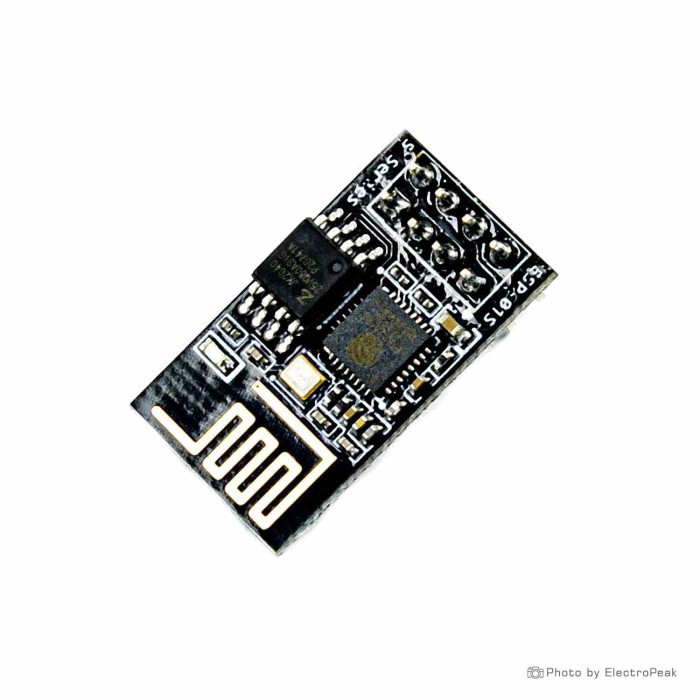

Ai-Thinker ESP-01S ESP8266 WiFi Module
$1.9500
In stock
SKU
COM-03-078
Volume discounts:
- +100 6 % $1.8300
- +300 8 % $1.7900
- +500 10 % $1.7500
- +1000 12 % $1.7100
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Description:
This WiFi serial transceiver module based on ESP8266 SoC. Which has an Integrated TCP/IP protocol stack. ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
Specification:
- 1M Flash
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier, and matching network
- Integrated PLLs, regulators, DCXO, and power management units
- +19.5 dBm output power in 802.11b mode
- Power down leakage current of <10 uA
- Integrated low power 32-bit CPU could be used as an application processor
- SDIO 1.1/2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4 ms guard interval
- Wake up and transmit packets in < 2 ms
- Standby power consumption of < 1.0 mW (DTIM3)
