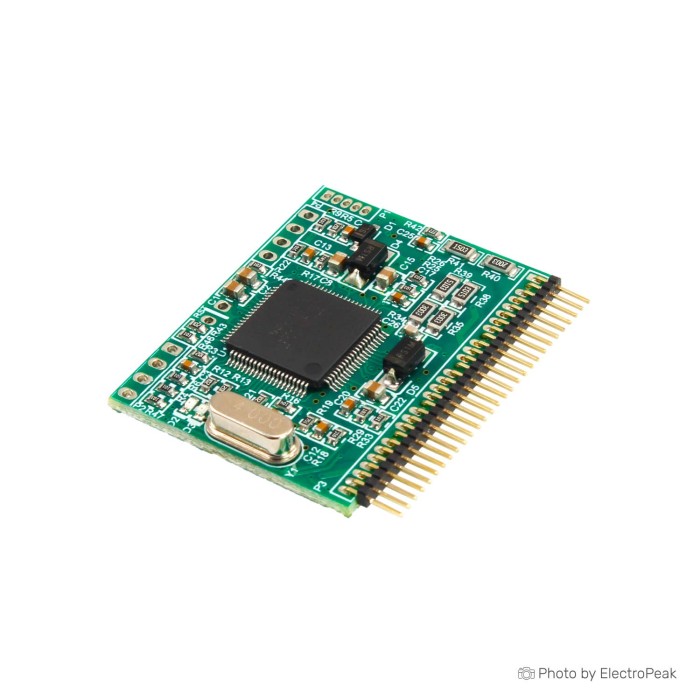

EGS005 Pure Sine Wave Inverter SPWM Driver Board

SAVE
As low as $7.2500
In stock
Only %1 left
SKU
BAT-17-003
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
XKT203-50 Pulse High Voltage Inverter 150W Previous XKT203-50 Pulse High Voltage Inverter 150W

The EGS005 Pure Sine Wave Inverter SPWM Driver Board is designed for high-performance inverters, utilizing the advanced EG8025 regime chip. This board integrates digital and analog functions with a built-in 600V half-bridge high-voltage MOS driver. It ensures minimal waveform distortion and high output voltage precision, meeting stringent industry standards. The EGS005 also features comprehensive protection mechanisms and UART serial port communication for easy configuration and monitoring.

Specifications of EGS005 Pure Sine Wave Inverter SPWM Driver Board

  • Chip: EG8025
  • Waveform Distortion (No Load): < 1.5%
  • Waveform Distortion (Full Load): < 3%
  • Voltage Precision: High
  • Protection Functions:
    • DC Bus Overvoltage
    • DC Bus Undervoltage
    • AC Output Undervoltage
    • Overload Alarm
    • Overload Indication
    • Overcurrent Indication
    • Over-Temperature Indication
    • Short-Circuit Protection
  • Communication: UART serial port
  • Dimensions: ---

Datasheet of EGS005 Pure Sine Wave Inverter SPWM Driver Board

Datasheet
