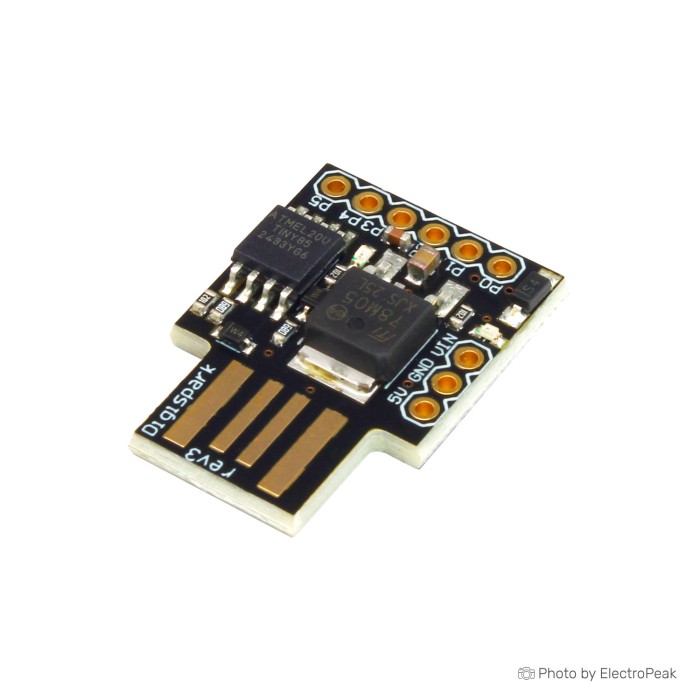

Digispark USB Attiny85 Development Board
$2.7700
In stock
SKU
ARD-01-017
Volume discounts:
- +25 4 % $2.6600
- +100 6 % $2.6000
- +300 8 % $2.5400
- +500 10 % $2.4900
- +1000 12 % $2.4300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Arduino Pro Mini - 5V (Clone) Previous
Digispark USB ATtiny85 Development Board is a compact development board built around the ATtiny85 microcontroller. It supports USB (HID) communication through the onboard USB connector and is designed for use with Arduino IDE. The board offers a small form factor for electronics and robotics projects that need a simple microcontroller platform. It includes digital I/O, analog inputs, and PWM support. Power can be supplied through USB or an external source. The 5V voltage regulator with 500 mA capacity is included for board operation.
Features of Digispark USB ATtiny85 Development Board
- ATtiny85 microcontroller
- USB (HID) communication
- Compact board size
- Arduino IDE support
- Digital and analog I/O
- PWM output support
- Status LED included
Specifications of Digispark USB ATtiny85 Development Board
- Microcontroller model: ATtiny85
- CPU frequency: 16 MHz
- Flash memory: 8 KB
- RAM: 512 bytes
- Digital I/O pins: 6
- Analog input pins: 4 (10-bit)
- Communication: USB (HID) via onboard USB connector
- Arduino IDE support: Version 1.0 (OSX/WIN/Linux)
- Power supply: USB or external source
- Voltage regulator: 5 V with 500 mA capacity
- Flash memory: 8 KB
- Communication: I2C and SPI
- I/O pins: 6
- PWM pins: 3
- Status LED: Yes
How to Use Digispark USB ATtiny85 Development Board
- Connect the board through USB or use an external power source.
- Program the board with Arduino IDE version 1.0 on OSX, WIN, or Linux.
More Info
- The board uses an onboard USB connector for communication.
- The compact size makes it suitable for small electronics projects.
| MCU/SoC | ATtiny85 |
|---|---|
| Product Family | Arduino |
| Architecture | AVR |
| CPU Cores | 1 |
| Clock Speed (MHz) | 16 MHz |
| Flash | 8 KB |
| SRAM | 512 bytes |
| EEPROM | 512 bytes |
| GPIO Pins | 6 |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| USB Ports | Onboard USB connector (HID support) |
| Ethernet Support | No |
| ADC Channels | 4 |
| PWM Channels | 3 |
| Operating Voltage (V) | 5V |
| GPIO Voltage (V) | 5V |
| GPIO Current (mA) | 20 mA |
| Wireless | No |
| Form Factor | Compact form factor |
| IDE Support | Arduino IDE |
| Input Voltage (V) | 7-12V via VIN |
| Antenna Type | No |
| Bluetooth Ver. | No |
