ATX PSU Power Supply Module - 160W, 12V
$10.5000
In stock
SKU
BAT-02-045
Volume discounts:
- +25 4 % $10.0900
- +50 6 % $9.8900
- +100 8 % $9.6800
- +300 10 % $9.4800
- +500 12 % $9.2700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
KIS3R33S Step Down Buck Converter Module - 7V-24V to 5V, 3A, USB Output Previous

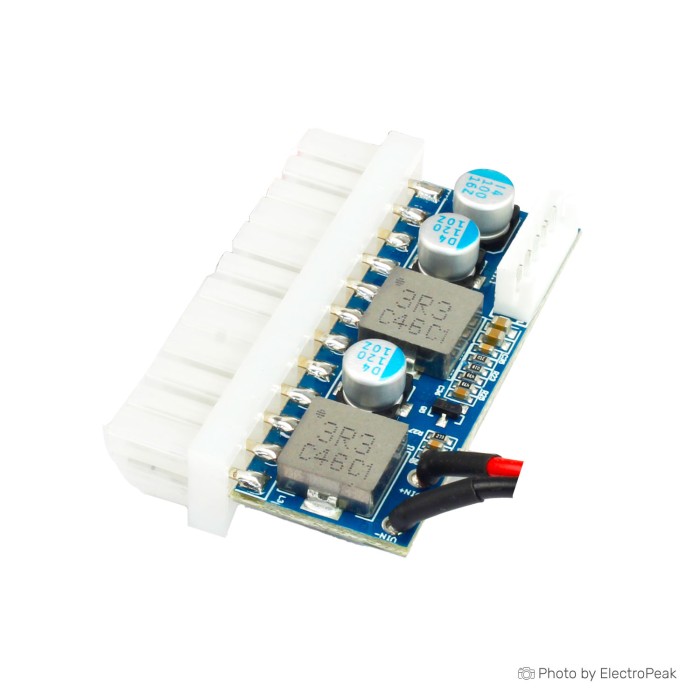

ATX PSU Power Supply Module is a compact 24-pin mini-ITX power supply module for small motherboards and compact computer projects. It uses a 12V power source and delivers 160W output power with 200W at maximum power. The module supports mini-ITX motherboards and standard boards with an ATX 24-pin connector. It features a fanless design for silent operation and low heat generation. HyperWatt™ technology is included for high power delivery in a very small form factor.
Features of ATX PSU Power Supply Module - 160W, 12V
- Compact 24-pin mini-ITX design
- Fanless silent operation
- High power in a small form factor
- 12V input operation
- ATX 24-pin compatibility
- Low heat generation
Specifications of ATX PSU Power Supply Module - 160W, 12V
- Input voltage: 12V DC
- Output voltage: 12+ / 12- / 5+ / 5- / 3.3+ V
- Output power: 160W
- Maximum power: 200W
- Compatibility: D945GCLF2
- Compatibility: DG45FC
- Compatibility: Atom
- Compatibility: Core 2 Duo
- Compatibility: VIA C7/nano
- Compatibility: AMD motherboards
- Dimensions: 31x53x15mm
- Dimensions: L5.5 × W1.3 × H3.5 cm
- Input voltage range: 11.4V-12.6V
- Efficiency: >= 92%
- Operating temperature: 0 ~ 40
- Storage temperature: -20 ~ 80
- Design type: Fanless
- Design type: No sound
How to Use ATX PSU Power Supply Module - 160W, 12V
- Connect the module to a 12V DC power source.
- Attach the ATX 24-pin connector to the motherboard.
- Verify that the motherboard matches the supported connection type.
- Operate the system within the listed voltage and temperature limits.
More Info
- HyperWatt™ technology is included.
- The module is designed for compact computer projects.
- The design is fully fanless.
