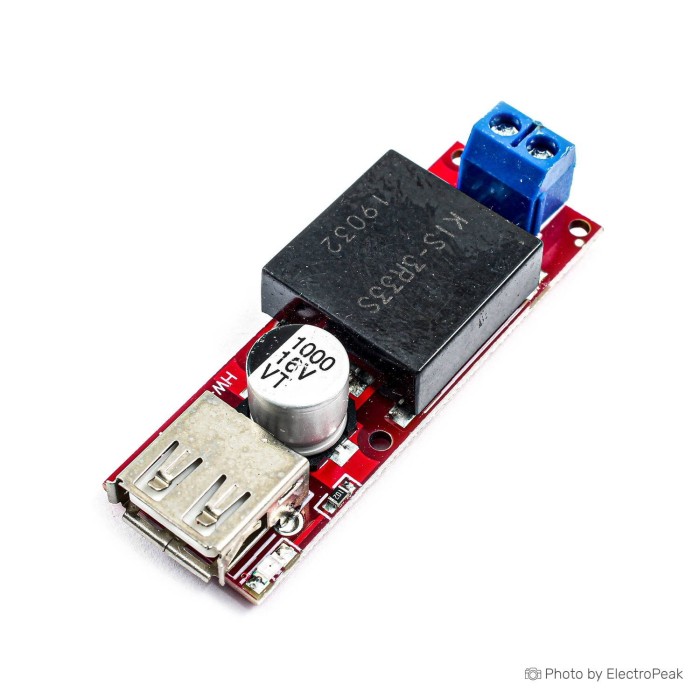

KIS3R33S Step Down Buck Converter Module - 7V-24V to 5V, 3A, USB Output

The KIS3R33S Step Down Buck Converter Module is a DC to DC buck regulator designed for stable 5V output from a 7V-24V input range. It uses switching conversion and synchronous rectification to provide a fixed output voltage. This buck converter module is suitable for voltage stabilization in electronics projects that require regulated power. It includes overcurrent protection and is built for operation across a wide temperature range. The module is compact and intended for electronics and robotics applications where controlled voltage is needed.

Features of KIS3R33S Step Down Buck Converter Module

• Non-isolated buck design
• Synchronous rectification
• Stable 5V output
• Overcurrent protection
• High conversion efficiency

Specifications of KIS3R33S Step Down Buck Converter Module

• Input Voltage: 7V-24V
• Output Voltage: 5V
• Output Current: 4A (short)
• Conversion Efficiency: 96% (maximum)
• Switching Frequency: 340KHz
• Output Ripple: 30mV (max)
• External Dimensions: 60 * 21 * 14 (L * W * H) (mm)

How to Use KIS3R33S Step Down Buck Converter Module

1. Connect a 7V-24V DC input to the module.
2. Use the 5V output to power your circuit.
3. Ensure the load remains within the module limits.

More Info

• Designed as a DC to DC switching regulator.
• Suitable for regulated power delivery in electronics projects.
