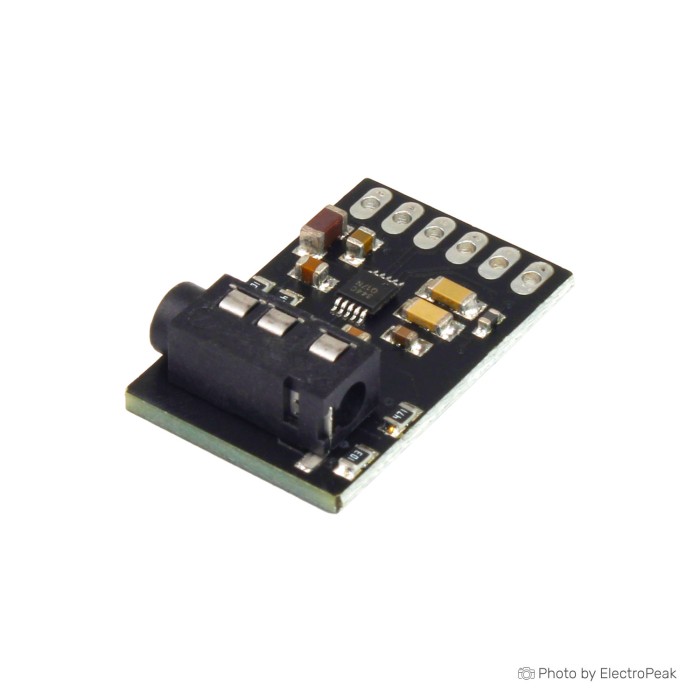

CS4344 24Bit DAC Converter Stereo Audio Module
$1.7500
In stock
SKU
MOD-04-001
Volume discounts:
- +50 4 % $1.6800
- +100 6 % $1.6500
- +300 7 % $1.6200
- +500 10 % $1.5800
- +1000 11 % $1.5500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XH-M548 TPA3116D2 Bluetooth Amplifier 120W Previous
The CS4344 24Bit DAC Converter Stereo Audio Module is a digital-to-analog converter module for stereo audio output. It uses a multi-bit Delta-Sigma modulator and 24-bit conversion for audio playback. The module supports a dynamic range of 105dB and THD+N of -95dB. It operates on DC 3.3V~5V and supports sample rates up to 192kHz with automatic detection. The module provides filtered line level outputs and includes low clock jitter sensitivity and on-chip digital de-emphasis. Its compact 27x17x7mm size makes it suitable for space-conscious audio electronics projects.
Features of CS4344 24Bit DAC Converter Stereo Audio Module
- 24-bit digital-to-analog conversion
- Stereo audio output
- Multi-bit Delta-Sigma modulator
- 105dB dynamic range
- -95dB THD+N
- Automatic sample rate detection
- Filtered line level outputs
- Low clock jitter sensitivity
- On-chip digital de-emphasis
Specifications of CS4344 24Bit DAC Converter Stereo Audio Module
- Work Voltage: DC 3.3V~5V
- Work Temperature: -40℃~125℃
- Work Humidity: 0%~95% RH
- Dynamic Range: 105dB
- THD+N: -95dB
- Sample Rate: Automatically detects up to 192kHz
- Modulator: Multi-bit Delta-Sigma
- Outputs: Filtered line level
- Dimensions: 27x17x7mm
- Features: Low clock jitter sensitivity, on-chip digital de-emphasis
How to Use CS4344 24Bit DAC Converter Stereo Audio Module
- Connect the module to a DC 3.3V~5V power supply.
- Wire the digital audio input and the output stage as required by your system.
More Info
- Product type: stereo audio DAC converter module
- Compact module design
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.3V or 5V |
| Operating Temp (°C) | -40 to 125 |
| Dimensions (mm) | 27x17x7 |
| Audio Function | Digital to Analog Conversion |
| Sampling Rate (Hz) | 192kHz |
| Audio Formats | PCM |
| Input Types | Digital |
| Bluetooth Ver. | No |
| Output Type | Line |
| Channels | 2-channel |
| Chipset | CS4344 |
| Humidity Range | 0%~95% RH |
