XH-M548 TPA3116D2 Bluetooth Amplifier 120W
$9.5000
In stock
SKU
SEN-17-162
Volume discounts:
- +25 4 % $9.1200
- +50 6 % $8.9300
- +100 8 % $8.7300
- +300 10 % $8.5400
- +500 12 % $8.3500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DY-AP3001 30W Digital Amplifier Module Previous

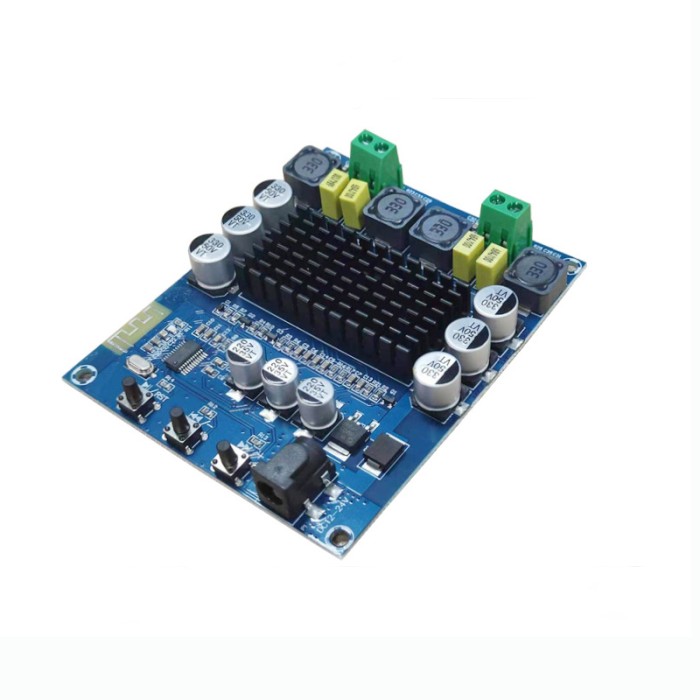

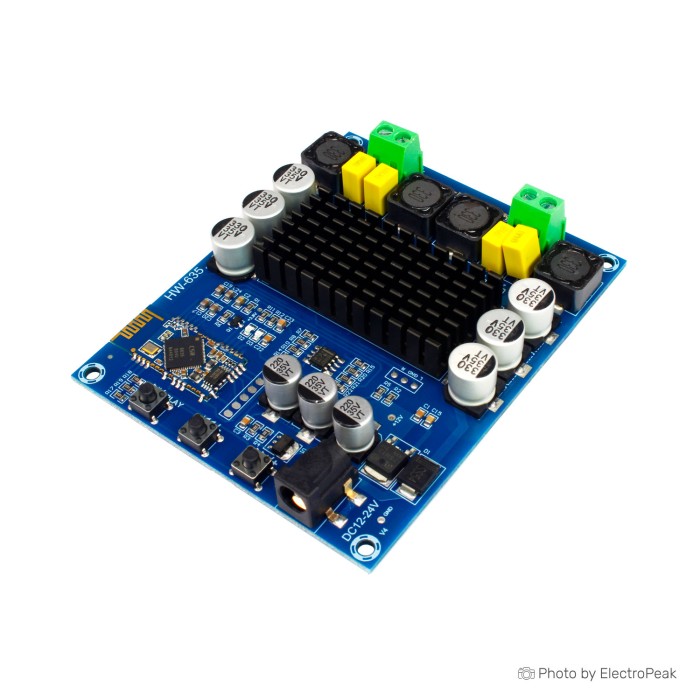

XH-M548 TPA3116D2 Bluetooth Amplifier is a dual-channel audio amplifier module with Bluetooth wireless input. It delivers up to 120W output, with 60W per channel. The module uses the TPA3116D2 amplifier chip for audio amplification. Bluetooth 4.2 is included for wireless audio streaming. It is designed for DIY audio projects, home audio systems, and portable speakers.
Features of XH-M548 TPA3116D2 Bluetooth Amplifier - 120W
- Dual-channel output
- Bluetooth 4.2 connectivity
- TPA3116D2 amplifier chip
- Wireless audio input
- High-efficiency audio amplification
Specifications of XH-M548 TPA3116D2 Bluetooth Amplifier - 120W
- Amplifier chip: TPA3116D2
- Output power: 120W (60W per channel)
- Bluetooth version: 4.2
- Bluetooth protocol: HFP V1.6
- Bluetooth protocol: HSP V1.2
- Bluetooth protocol: A2DP V1.2
- Bluetooth protocol: AVRCP V1.4
- Bluetooth protocol: DI V1.3
- Operating voltage: 12V to 24V DC
- Current consumption: >3A
- Input signal: Bluetooth
- Frequency response: 20Hz - 20kHz
- Dimensions: 98mm x 80mm x 20mm
How to Use XH-M548 TPA3116D2 Bluetooth Amplifier - 120W
- Connect a 12V to 24V DC power supply with current above 3A.
- Pair a Bluetooth device with the module.
- Connect the speaker outputs to suitable speakers.
- Play audio from the paired Bluetooth device.
More Info
- Suitable for DIY audio projects.
- Suitable for home audio systems.
- Suitable for portable speaker designs.
| Interface Type | Wireless |
|---|---|
| Operating Voltage (V) | 12-24V DC |
| Operating Current (mA) | >3000 |
| Dimensions (mm) | 98x80x20 |
| Mounting Type | Screw holes |
| Audio Function | Amplifier |
| Output Power | 2x120W |
| Speaker Impedance (Ω) | 4Ω, 8Ω |
| Input Types | Bluetooth |
| Bluetooth Ver. | 4.2 |
| Output Type | Analog |
| Channels | 2-channel |
| Chipset | TPA3116D2 |
| Frequency Response | 20Hz - 20kHz |
