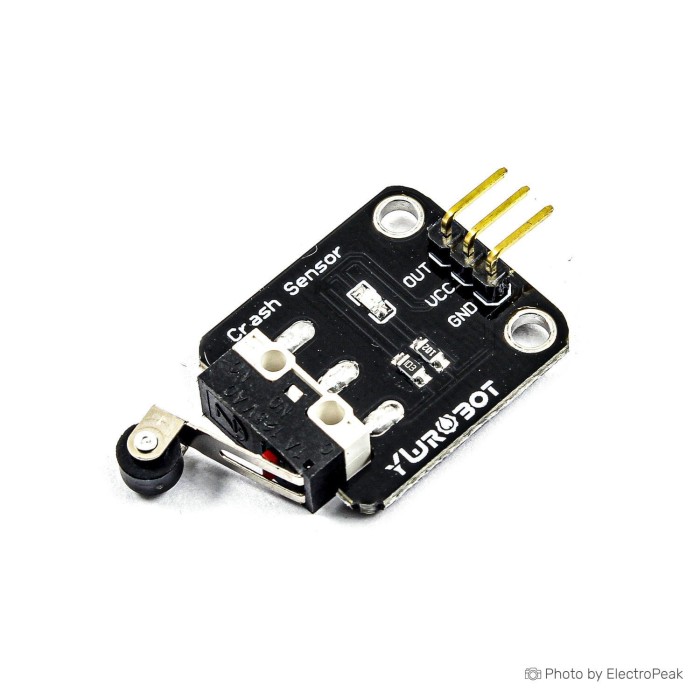

YwRobot Collision Sensor Module (for 3D Printers)

YwRobot Collision Sensor Module For 3D Printers is a mechanical collision sensor module designed for end stop use on each axis. It supports both normally open and normally closed operation. The module uses a mechanical sensing action and is intended for use on control boards for 3D printers. It provides digital output and a high-sensitivity crash sensing structure. When a collision is detected, the output goes low; when the switch is released, the output returns high.

Features of YwRobot Collision Sensor Module For 3D Printers - 3.3V, 5V, 28x21mm

• Mechanical sensing action
• Normally open and normally closed operation
• Digital output
• High-sensitivity crash sensing
• Low output on collision
• High output when released

Specifications of YwRobot Collision Sensor Module For 3D Printers - 3.3V, 5V, 28x21mm

• Dimensions: 28 * 21mm
• Scr ew: 15mm
• Weight: 4g
• Voltage: 3.3V, 5V
• Port: Digital level
• Style: Wheel on the right
• Platform: Arduino, SCM, ARM, Raspberry Pi
• Pressed state: LOW
• Normal state: HIGH
• Voltage: 3v to 12v
• Output: Digital
• Sensitivity: High
• Size: 35mm x 22mm

How to Use YwRobot Collision Sensor Module For 3D Printers - 3.3V, 5V, 28x21mm

1. Install the module on the target axis or control board.
2. Connect it to the digital input path for collision or end stop detection.
3. Use the pressed and released states for LOW and HIGH output behavior.

More Info

• Suitable for repeated use on frequently used axes.
• Works as a mechanical end stop and collision detection module.
