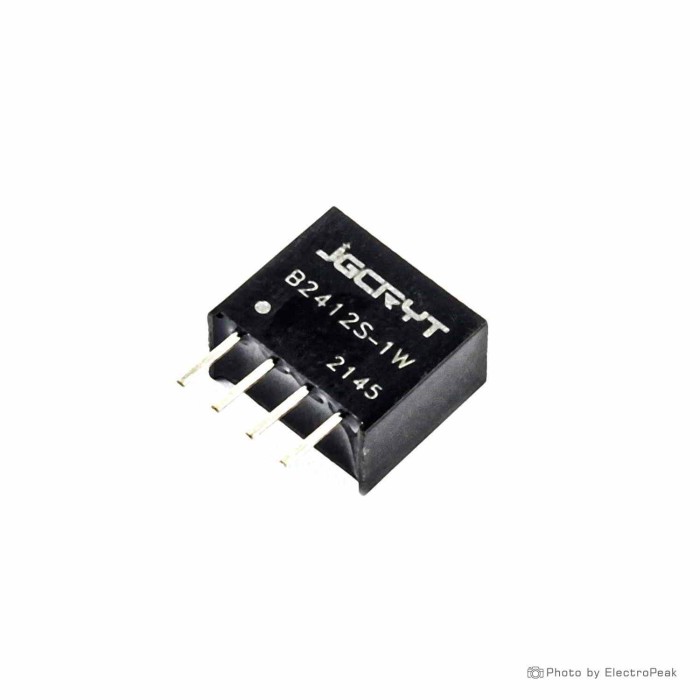

B2412S DC-DC Isolated Power Supply Module - 1W, 24V to 12V

[BAT-02-124]
Volume discounts:
  • +100 6 % $0.80
  • +300 8 % $0.78
  • +500 9 % $0.77
  • +1000 12 % $0.75
Shop with confidence Learn More
Availability: 1895 items
SKU
BAT-02-124
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.85

The B2412S-1W family is specifically designed for applications in the board power system that require a set of voltages that are isolated from the input supply. This product is suitable for to:

1. The input power supply voltage is relatively stable (voltage variation range ±10% Vin);

2. Requirements isolation between input and output (isolation voltage ≤ 1000VDC);

3. The output voltage stability and output ripple noise are not high.

Specificatoins of B2412S DC-DC Isolated Power Supply Module - 1W, 24V to 12V:

  • Voltage (input): 24V ±10% DC
  • Voltage (output): 12V ±10% DC
  • Power: 1W
  • Maximum Efficiency (%): 70 to 79
  • Output Current (A): 0.086
  • Linear adjustment rate: ±1.2%
  • Load regulation rate (10%-100%): 15%
  • Short circuit protection 1S, automatic recovery
  • Working temperature: -40~85°C
  • Noise/Ripple :≤75mVp-p (Nom.), ≤50mVp-p (Max.)
  • MTBF≥3.5 million hours (3500000Hrs)
  • Dimensions (mm): 11.7 x 6 x 10

Features of B2412S DC-DC Isolated Power Supply Module - 1W, 24V to 12V:

  • Efficiency up to 81%
  • Small Footprint
  • Miniature SIP/DIP Package
  • Single Output Voltage
  • 1KVDC Isolation
  • Temperature Range: -40°C~+85°C
  • Industry Standard Pinout
  • UL94-V0 Package
  • No Heat sink Required
  • No External Component Required
  • PCB Mounting
  • RoHS Compliance
