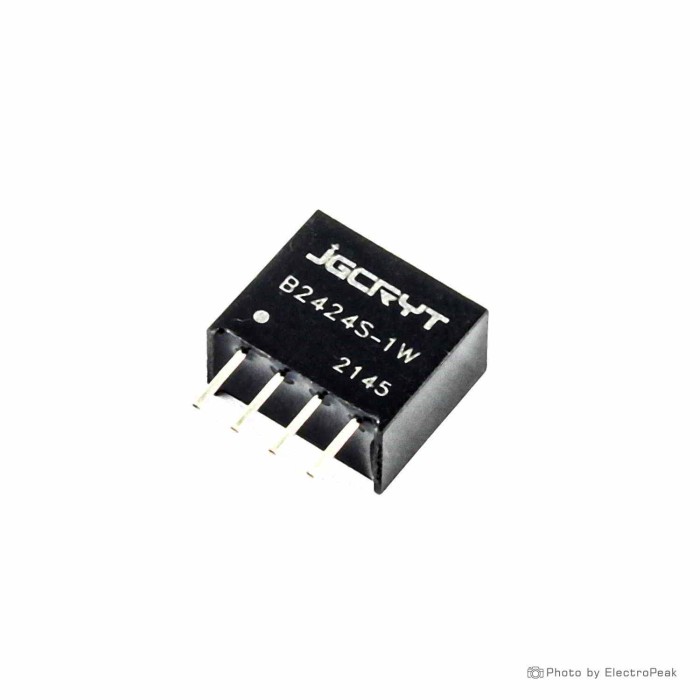

B2424S DC-DC Isolated Power Supply Module - 1W, 24V to 24V

B2424S DC-DC Isolated Power Supply Module is a compact isolated switching converter for 24V to 24V power conversion. It provides a single 24V DC output with 1W output power and is designed for PCB-mounted integration. The module uses an isolated design with 1000VDC isolation between input and output. It supports a 20 to 30V DC input range and delivers up to 0.042A output current. With up to 81% efficiency, it is built for compact board-level power applications. The module comes in a miniature SIP/DIP package and complies with RoHS and UL94-V0.

Features of B2424S DC-DC Isolated Power Supply Module - 1W, 24V to 24V

• 24V to 24V conversion
• 1W output power
• 1000VDC isolation
• Single output voltage
• Up to 81% efficiency
• Miniature SIP/DIP package
• PCB mount design
• No heatsink required
• No external components required
• RoHS compliant
• UL94-V0 rated
• Short circuit protection with 1S automatic recovery
• Industry standard pinout

Specifications of B2424S DC-DC Isolated Power Supply Module - 1W, 24V to 24V

• Input Voltage: 20 to 30V DC
• Output Voltage: 24V DC
• Output Current: Max 0.042A
• Output Power: 1W
• Efficiency: Up to 81%
• Output Type: Single output
• Isolation Voltage: 1000VDC
• Package: Miniature SIP/DIP package
• Operating Temperature Range: -40°C to +85°C
• Flame Rating: UL94-V0
• Mounting: PCB mount
• Compliance: RoHS compliant
• Voltage (input): 24V ±10% DC
• Voltage (output): 24V ±10% DC
• Maximum Efficiency (%): 70 to 79
• Output Current (A): 0.043
• Linear adjustment rate: ±1.2%
• Load regulation rate (10%-100%): 15%
• Short circuit protection: 1S, automatic recovery
• Working temperature: -40~85°C
• Noise/Ripple: ≤75mVp-p (Nom.), ≤50mVp-p (Max.)
• MTBF: ≥3.5 million hours (3500000Hrs)
• Dimensions (mm): 11.7 x 6 x 10

How to Use B2424S DC-DC Isolated Power Supply Module - 1W, 24V to 24V

1. Provide a DC input within the specified input voltage range.
2. Mount the module directly on the PCB using the SIP/DIP package.
3. Connect the input and output pins according to the standard pinout.
4. Use the 24V DC output for the intended board power connection.

More Info

• Isolation is provided between input and output.
• The module is designed for board-level power applications.
• The package supports compact integration.
• Efficiency, output current, and regulation values are included for selection and system design.
