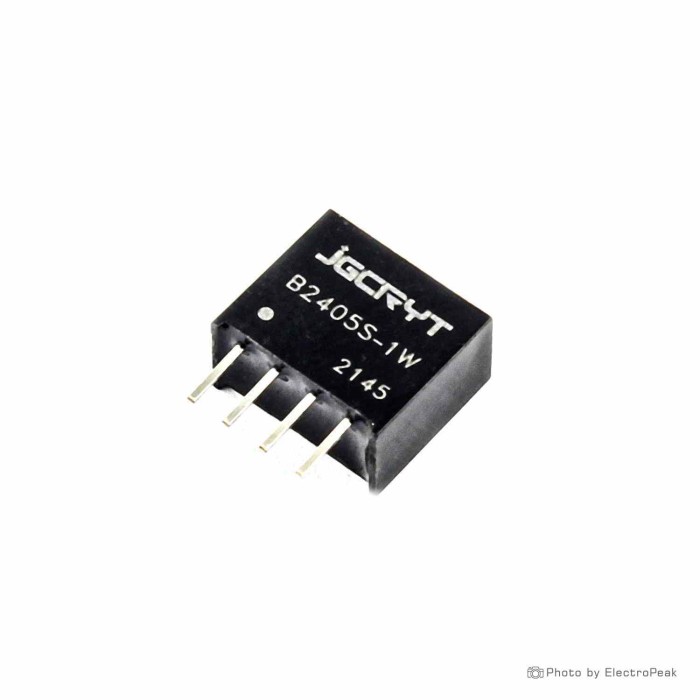

B2405S DC-DC Isolated Power Supply Module - 1W, 24V to 5V
$0.8500
In stock
SKU
BAT-02-123
Volume discounts:
- +50 4 % $0.8200
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 11 % $0.7600
- +1000 12 % $0.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
B1212S DC-DC Isolated Power Supply Module - 1W, 12V to 12V Previous
B2405S DC-DC Isolated Power Supply Module is a 1W isolated power module for converting a 24V DC input to a 5V DC output. It is designed for board power systems that need isolation between input and output. The module supports stable power conversion with a compact footprint and single output voltage. It includes a short circuit protection function with automatic recovery. The package is suitable for PCB mounting and uses an industry standard pinout.
Features of B2405S DC-DC Isolated Power Supply Module - 1W, 24V to 5V
- 1W power rating
- Isolated input and output
- 24V DC to 5V DC conversion
- Single output voltage
- Short circuit protection
- Automatic recovery
- Small footprint
- Miniature SIP/DIP package
- Industry standard pinout
- PCB mounting
Specifications of B2405S DC-DC Isolated Power Supply Module - 1W, 24V to 5V
- Power: 1W
- Input voltage: 21.6 to 26.4V DC
- Output voltage: 5V DC
- Output current: 200mA
- Efficiency: 80%
- Maximum efficiency: 70 to 79%
- Linear adjustment rate: ±1.2%
- Load regulation rate (10%-100%): 15%
- Short circuit protection: 1S, automatic recovery
- Working temperature: -40~85°C
- Operating temperature: -40 to 105°C
- Noise/Ripple: ≤75mVp-p (Nom.), ≤50mVp-p (Max.)
- MTBF: ≥3.5 million hours (3500000Hrs)
- Breakdown voltage: 1500V DC
- Isolation voltage: 1KVDC
- Dimensions (mm): 11.7 x 6 x 10
- Dimensions: 10x11.5mm (without pins)
- Package: UL94-V0
- RoHS compliance
How to Use B2405S DC-DC Isolated Power Supply Module - 1W, 24V to 5V
- Connect the 24V DC input to the module input terminals.
- Connect the 5V DC output to the load.
- Mount the module on the PCB using the standard pinout.
- Verify the input voltage stays within the specified range.
More Info
- Designed for board power systems requiring isolation.
- No heat sink required.
- No external component required.
- Suitable for stable input power supply voltage conditions.
- Suitable where output voltage stability and output ripple noise are not high.
