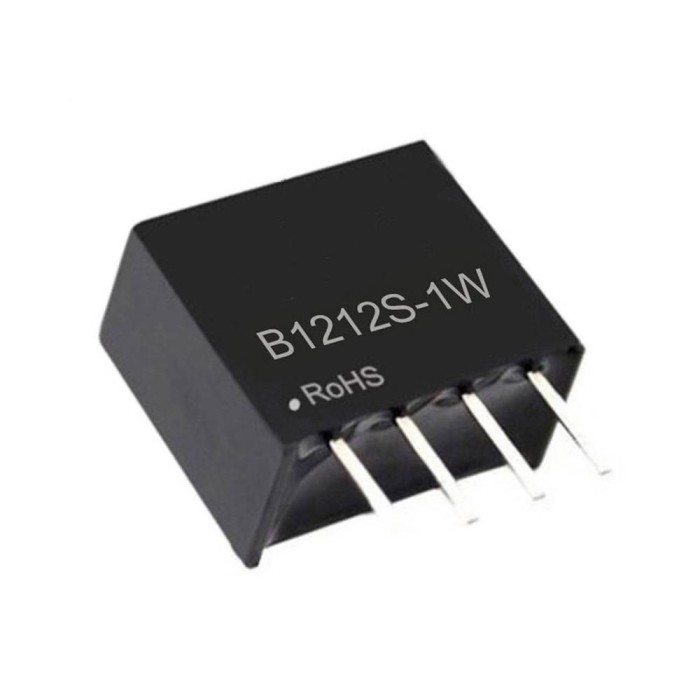

The B1212S-1W family is specifically designed for applications in the board power system that require a set of voltages that are isolated from the input supply. This product is suitable for to:
1. The input power supply voltage is relatively stable (voltage variation range ±10% Vin);
2. Requirements isolation between input and output (isolation voltage ‰¤ 1000VDC);
3. The output voltage stability and output ripple noise are not high.
Specificatoins of B1212S DC-DC Isolated Power Supply Module - 1W, 12V to 12V:
- Voltage (input): 12V ±10% DC
- Voltage (output): 12V ±10% DC
- Power: 1W
- Maximum Efficiency (%): 70 to 79
- Output Current (A): 0.086
- Linear adjustment rate: ±1.2%
- Load regulation rate (10%-100%): 15%
- Short circuit protection 1S, automatic recovery
- Working temperature: -40~85°C
- Noise/Ripple :‰¤75mVp-p (Nom.), ‰¤50mVp-p (Max.)
- MTBF‰¥3.5 million hours (3500000Hrs)
- Dimensions (mm): 11.7 x 6 x 10
Features of B1212S DC-DC Isolated Power Supply Module - 1W, 12V to 12V:
- Efficiency up to 81%
- Small Footprint
- Miniature SIP/DIP Package
- Single Output Voltage
- 1KVDC Isolation
- Temperature Range: -40°C~+85°C
- Industry Standard Pinout
- UL94-V0 Package
- No Heat sink Required
- No External Component Required
- PCB Mounting
- RoHS Compliance
