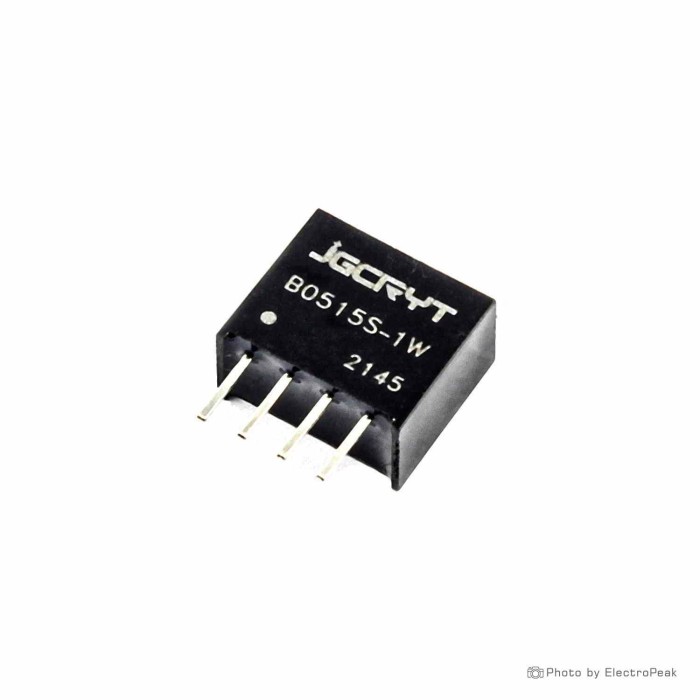

B0515S DC-DC Isolated Power Supply Module - 1W, 5V to 15V
$0.8500
In stock
SKU
BAT-02-118
Volume discounts:
- +50 4 % $0.8200
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 11 % $0.7600
- +1000 12 % $0.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
B0512S DC-DC Isolated Power Supply Module - 1W, 5V to 12V Previous
B0515S DC-DC Isolated Power Supply Module is a 1W isolated power conversion module with a 5V input and 15V output. It is designed for DC to DC voltage conversion with electrical isolation and a compact SIP package. The module supports stable power delivery in a small form factor. It includes short circuit protection with automatic recovery. The operating temperature range and efficiency specifications are listed below.
Features of B0515S DC-DC Isolated Power Supply Module - 1W, 5V to 15V
- 1W isolated power conversion
- 5V input to 15V output
- Compact SIP package
- Short circuit protection
- Automatic recovery
- Low ripple and noise
- High isolation voltage
Specifications of B0515S DC-DC Isolated Power Supply Module - 1W, 5V to 15V
- Input voltage: 4.5~5.5VDC
- Input voltage: 5V ±10% DC
- Output voltage: 15.0V
- Output voltage: 15V ±10% DC
- Output power: 1W
- Output current: 0.07A
- Isolation voltage: 1500VDC/1min
- Isolation voltage: 3000VDC/1s
- Isolation voltage: 1KVDC
- Efficiency: up to 80%
- Maximum efficiency: 70 to 79%
- Efficiency: up to 81%
- Short circuit protection: 1S
- Short circuit protection: automatic recovery
- Working environment temperature: -40℃～+85℃
- Working temperature: -45~85°C
- Linear adjustment rate: ±1.2%
- Load regulation rate (10%-100%): 15%
- Noise/ripple: 50mVp-p (20MHz bandwidth)
- Noise/ripple: ≤75mVp-p (Nom.)
- Noise/ripple: ≤100mVp-p (Max.)
- MTBF: more than 3.5 million hours
- MTBF: ≥ 200 million hours
- Dimensions: 11.5x6x10mm
- Dimensions: 11.7 x 6 x 10 mm
- Industry standard pinout
- Miniature SIP/DIP package
- UL94-V0 package
- No heat sink required
- No external component required
- PCB mounting
- RoHS compliance
How to Use B0515S DC-DC Isolated Power Supply Module - 1W, 5V to 15V
- Connect the input supply within the listed input voltage range.
- Connect the output to the required 15V load.
- Mount the module using the available package and pinout format.
More Info
- Isolated board power module
- Single output voltage design
- Suitable for compact electronics assemblies
