F5305S Isolation MOSFET Module
$0.6000
In stock
SKU
BAT-02-169
Volume discounts:
- +50 3 % $0.5800
- +100 7 % $0.5600
- +300 8 % $0.5500
- +500 10 % $0.5400
- +1000 12 % $0.5300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

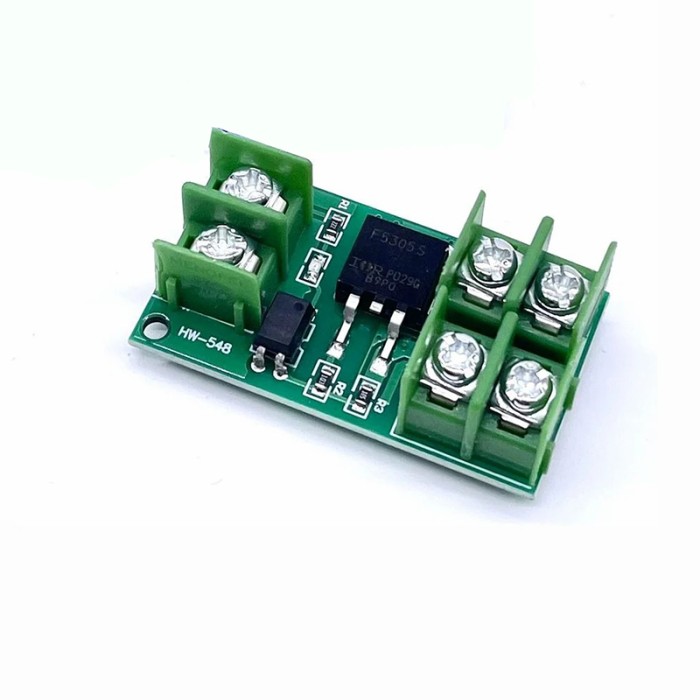

The F5305S Isolation MOSFET Module is designed for efficient and safe switching applications. It provides electrical isolation between the control side and the load side. This module is suitable for power management systems, motor controls, and automation projects. Its compact form factor supports straightforward integration into electronics and robotics builds.
Features of F5305S Isolation MOSFET Module
- Electrical isolation
- Safe switching operation
- Input and output terminals
- Compact design
Specifications of F5305S Isolation MOSFET Module
- Isolation Voltage: High electrical isolation for safe operation in high-voltage environments.
- Control Voltage: 3.3V to 5V
- Load Voltage: Up to 100V
- Interface: Input and output terminals
- Dimension: 46x25x18mm
- Input voltage: 3 to 20V
- Current: 5mA
- Output Controlled Voltage: 5 to 36V
- Heatsink needed above 5A
How to Use F5305S Isolation MOSFET Module
- Connect the control side to a compatible 3.3V to 5V signal source.
- Wire the load side through the input and output terminals.
- Use within the stated voltage and current limits.
More Info
- Suitable for safe switching in high-voltage environments.
- Designed for integration in power management, motor control, and automation applications.
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
|---|---|
| Interface Type | Digital |
| Operating Voltage (V) | 3.3V - 5V |
| Operating Current (mA) | 5mA |
| Dimensions (mm) | 46x25x18mm |
| Mounting Type | Screw holes |
| Control Type | MOSFET |
| Channel Count | 1 |
| Switching Capacity | 100V |
| Load Current (A) | 5A |
| Control Signal | Digital (3.3V/5V) |
| Chipset | F5305S |
| LED Count | 1 |
| Relay Type | SSR |
| Trigger Level | High Level Trigger |
| Display Type | None |
| Material | PCB |
| Input Type (AC/DC) | DC |
