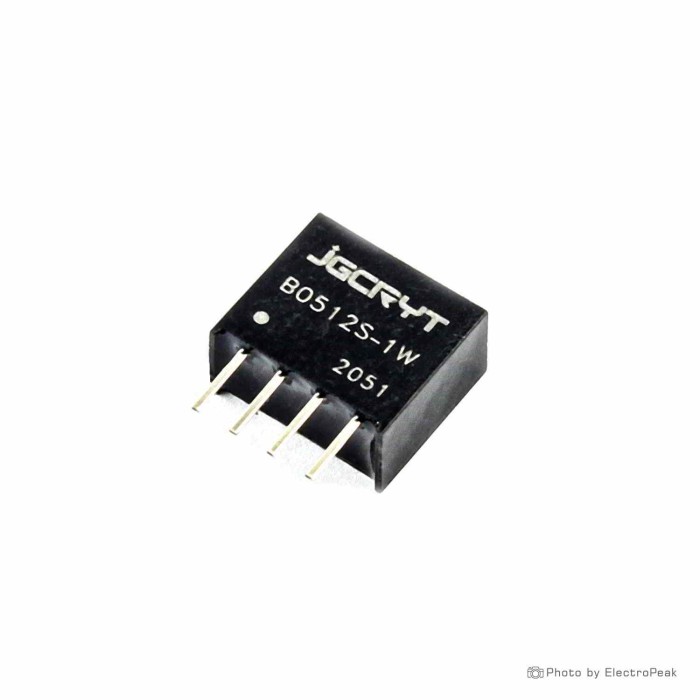

B0512S DC-DC Isolated Power Supply Module - 1W, 5V to 12V
$0.8500
In stock
SKU
BAT-02-117
Volume discounts:
- +50 4 % $0.8200
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 11 % $0.7600
- +1000 12 % $0.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
B0509S DC-DC Isolated Power Supply Module - 1W, 5V to 9V Previous
B0512S DC-DC Isolated Power Supply Module is a miniature isolated power solution for applications that need electrical separation between input and output. It converts 5V DC input to 12V DC output with a 1W power rating. The module is designed for compact board-level power systems and other small circuits requiring isolated supply rails. It supports stable conversion with specified efficiency and isolation characteristics. This DC-DC isolated power supply module offers a single output voltage in a small footprint.
Features of B0512S DC-DC Isolated Power Supply Module - 1W, 5V to 12V
- Isolated switching design
- 5V to 12V conversion
- 1W output power
- 83mA maximum output current
- 78% efficiency
- 1000V DC isolation
- Small size
Specifications of B0512S DC-DC Isolated Power Supply Module - 1W, 5V to 12V
- Input voltage: 5V DC
- Output voltage: 12V DC
- Maximum current output: 83mA
- Output power: 1W
- Efficiency: 78%
- Isolation voltage: 1000V DC
- Type: isolated switching
- Dimensions: approximately 19.7 x 10 x 7 mm
- Voltage (input): 5V ±10% DC
- Voltage (output): 12V ±10% DC
- Power: 1W
- Maximum Efficiency (%): 70 to 79
- Output Current (A): 0.8
- Working temperature: -45~85°C
- Noise/Ripple: ≤75mVp-p (Nom.), ≤100mVp-p (Max.)
- MTBF: ≥200 million hours
- Dimensions (mm): 11.7 x 6 x 10
How to Use B0512S DC-DC Isolated Power Supply Module - 1W, 5V to 12V
- Apply a 5V DC input to the module.
- Connect the load to the 12V DC output.
- Use the module within its specified power and current limits.
More Info
- Suitable for sensor circuits.
- Suitable for gate driver circuits.
- Suitable for measuring equipment.
- Single output voltage module.
