B0509S DC-DC Isolated Power Supply Module - 1W, 5V to 9V
$0.8500
In stock
SKU
BAT-02-116
Volume discounts:
- +50 4 % $0.8200
- +100 6 % $0.8000
- +300 8 % $0.7800
- +500 11 % $0.7600
- +1000 12 % $0.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
B0503S DC-DC Isolated Power Supply Module - 1W, 5V to 3.3V Previous

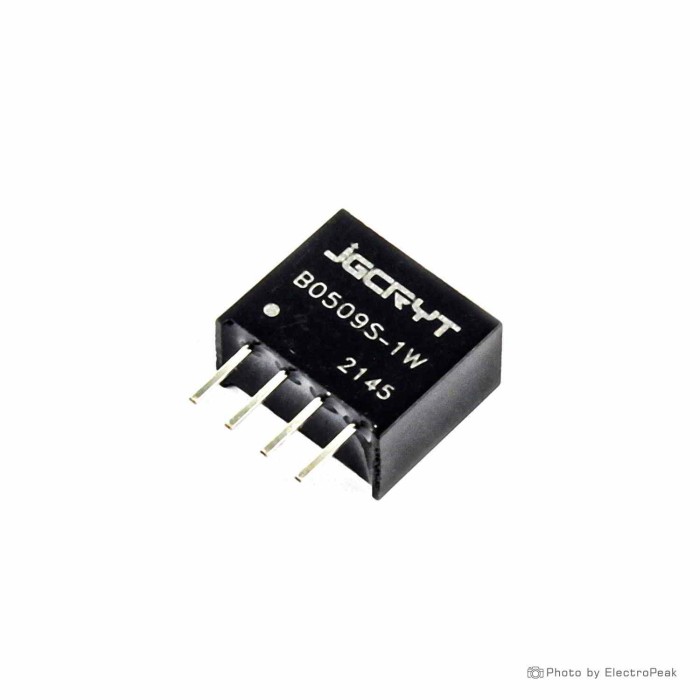

B0509S DC-DC Isolated Power Supply Module is a 1W isolated converter designed to change a 5V DC input to a 9V DC output. It provides electrical isolation between input and output for board-level power systems. The module is intended for applications that require a stable input supply within ±10% and isolated output power. It operates with low noise and ripple and supports compact PCB mounting. The B0509S module is available in a miniature SIP/DIP package and uses an industry standard pinout.
Features of B0509S DC-DC Isolated Power Supply Module - 1W, 5V to 9V
- Isolated power conversion
- 5V DC to 9V DC conversion
- 1W output power
- Miniature SIP/DIP package
- Industry standard pinout
- Single output voltage
- PCB mounting
- UL94-V0 package
- No heat sink required
- No external component required
- Short circuit protection
Specifications of B0509S DC-DC Isolated Power Supply Module - 1W, 5V to 9V
- Voltage (input): 5V ±10% DC
- Voltage (output): 9V ±10% DC
- Power: 1W
- Insulation voltage: 1000VDC
- Insulation resistance: 1000MΩ
- Working temperature: -45 to 85°C
- Conversion frequency: 100kHz (at 100% load)
- Noise/Ripple: ≤75mVp-p (Nom.), ≤100mVp-p (Max.)
- MTBF: More than 200 million hours
- Maximum efficiency: 70 to 79%
- Output current: 0.1A
- Linear adjustment rate: ±1.2%
- Load regulation rate (10%-100%): 15%
- Short circuit protection: 1S, automatic recovery
- Dimensions (mm): 11.7 x 6 x 10
- Temperature range: -40°C to +85°C
- Efficiency: Up to 81%
- Package standard: UL94-V0
- RoHS compliance
How to Use B0509S DC-DC Isolated Power Supply Module - 1W, 5V to 9V
- Apply a 5V ±10% DC input to the module.
- Connect the isolated output side to the 9V DC load.
- Mount the module on the PCB using the pinout.
- Use within the specified operating temperature and load conditions.
More Info
- Suitable for board power systems that require input-output isolation.
- Designed for applications with stable input voltage and low ripple sensitivity.
- Short circuit protection supports automatic recovery after 1S.
