MPS20N0040D Digital Barometric Pressure Module w/ HX710 ADC Converter
$0.9000
In stock
SKU
SEN-08-019
Volume discounts:
- +100 6 % $0.8500
- +300 8 % $0.8300
- +500 10 % $0.8100
- +1000 11 % $0.8000
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Mayatech MT90 Airspeed Sensor Differential Pressure Tube Previous

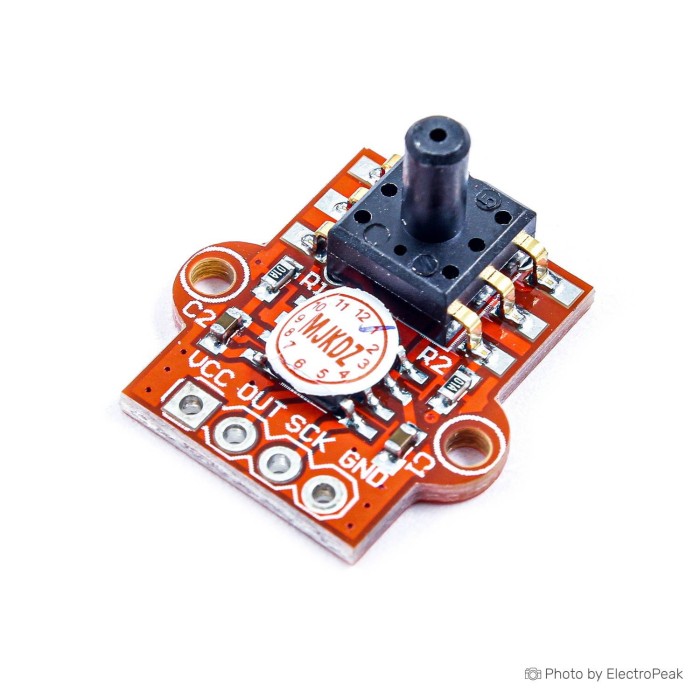

The MPS20N0040D Digital Barometric Pressure Module is a compact pressure sensor board with an HX710 ADC converter. It is designed for barometric pressure sensing and produces a digital output. The module uses a piezo-resistive pressure sensor structure and provides an electrical signal proportional to applied pressure. It supports pressure measurement for fluids such as air and water. The board is suitable for fluid level detection and control applications. It is compatible with Arduino boards and uses a standard two-wire communication protocol for connection to a microcontroller.
Features of MPS20N0040D Digital Barometric Pressure Module
- Digital output
- HX710 ADC converter
- Piezo-resistive sensing
- Compact board size
- Arduino compatibility
- Low power consumption
- Two-wire communication
Specifications of MPS20N0040D Digital Barometric Pressure Module
- Input Voltage: 3.3V to 5V DC
- Output Type: Digital
- Pressure Range: 0 to 40KPa
- Bridge Resistance: 5KΩ
- Operating Temperature: -35°C to 80°C
- Size: 19mm x 18mm
How to Use MPS20N0040D Digital Barometric Pressure Module
- Connect the module to a 3.3V to 5V DC supply.
- Wire the module to a microcontroller using the standard two-wire protocol.
- Read the digital output for pressure measurement.
More Info
- Used for fluid level detection and control.
- Suitable for air, water, and other fluid pressure measurement.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.3V to 5V |
| Operating Temp (°C) | -35°C to 80°C |
| Dimensions (mm) | 19mm x 18mm |
| IP Rating | None |
| Output Type | Digital |
| Resolution | 24-bit ADC |
| Measurement Range | 0 to 40 kPa |
| Environmental Parameter | Pressure |
| Chipset | HX710 |
| Relay Output | No |
| Protocols | Two-wire |
