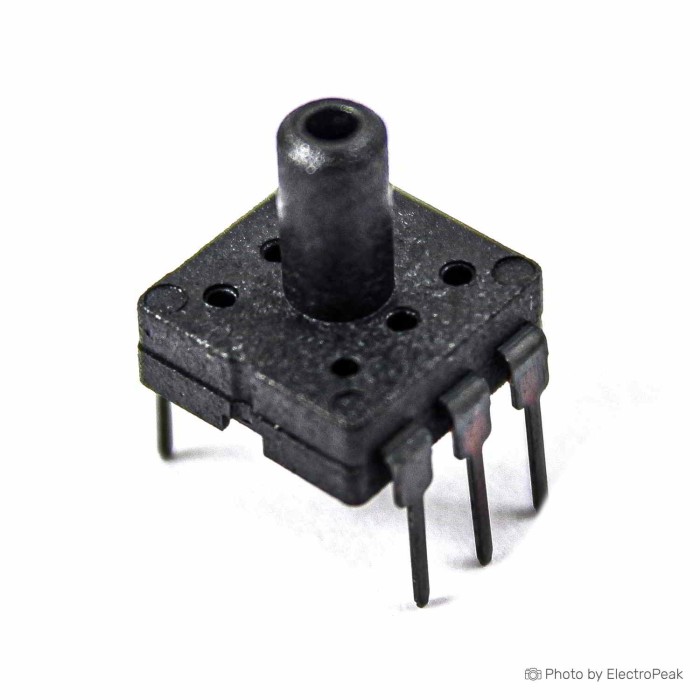

MPS20N0040D-D Sphygmomanometer Pressure Sensor
$0.7100
In stock
SKU
SEN-22-002
Volume discounts:
- +50 4 % $0.6800
- +100 6 % $0.6700
- +300 8 % $0.6500
- +500 10 % $0.6400
- +1000 11 % $0.6300
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MPL3115A2 I2C Barometric Pressure Altitude Sensor Module Previous
MPS20N0040D-D Sphygmomanometer Pressure Sensor is an analog pressure sensor for blood pressure measurement and related medical applications. It is also suitable for precision instruments, level measurement, altitude sensing, and industrial process control. The sensor provides analog output and comes in a DIP package for easy installation in electronic circuits. It is designed for high-accuracy pressure measurement with stable performance across a wide temperature range.
Features of MPS20N0040D-D Sphygmomanometer Pressure Sensor - 40KPa, Analog, DIP-6
- Analog output
- 40KPa differential pressure
- 5V input voltage
- 1mA input current
- DIP-6 package
- High linearity
- Low hysteresis
- Wide temperature range
Specifications of MPS20N0040D-D Sphygmomanometer Pressure Sensor - 40KPa, Analog, DIP-6
- Maximum pressure: 40Kpa (differential pressure)
- Output Type: Analog
- Input Voltage: 5V
- Input Current: 1mA
- Input impedance: 4KΩ ~ 6KΩ
- Output impedance: 4KΩ ~ 6KΩ
- Full-scale output voltage: 50mV ~ 100mV
- Bridge Resistance: 4KΩ ~ 6KΩ
- Linearity ± 0.3% F.S.
- Hysteresis ± 0.7% F.S.
- Bias Temperature coefficient ± 0.08% of F.S. / °c
- Temperature coefficient of sensitivity -0.21 % FS/ °c
- Operating temperature -40°C ~ 85°C
- Storage Temperature: -40°C ~ 125°C
- Package: DIP-6
- محدوده دما: -40 تا 125 درجه سانتیگراد
- سیگنال خروجی: آنالوگ
- مقاومت داخلی: 5 کیلواهم
- خطی بودن: ±0.3%
- هیسترزیس: ±0.2%
- وزن: 0.6 گرم
- بسته: DIP
- درجه حفاظت: 3X
How to Use MPS20N0040D-D Sphygmomanometer Pressure Sensor - 40KPa, Analog, DIP-6
- Install the sensor in the circuit using the DIP package.
- Apply the required electrical input within the stated specifications.
- Read the analog output for pressure measurement.
More Info
- Suitable for medical, precision, industrial, and measurement applications.
- Includes all listed electrical, mechanical, and temperature specifications.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 1 |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | THT |
| Output Type | Analog |
| Accuracy | High accuracy |
| Biometric Parameter | Blood Pressure |
| Weight (g) | 0.6 |
| Application | Medical applications,Precision instruments,Level measurement,Altitude sensing,Industrial process control,Automotive electronics,Consumer electronics |
| Detection Range | 40KPa |
| Sensor Type | Blood Pressure Sensor |
