MAISHENG Adjustable Power Supply - 30V, 10A
$86.9500
In stock
SKU
BAT-04-018
Volume discounts:
- +5 5 % $82.3600
- +10 8 % $80.0600
- +25 11 % $77.7700
- +50 13 % $75.4700
- +100 16 % $73.1800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Switching Power Supply SMPS - 12V, 10A, 120W Previous

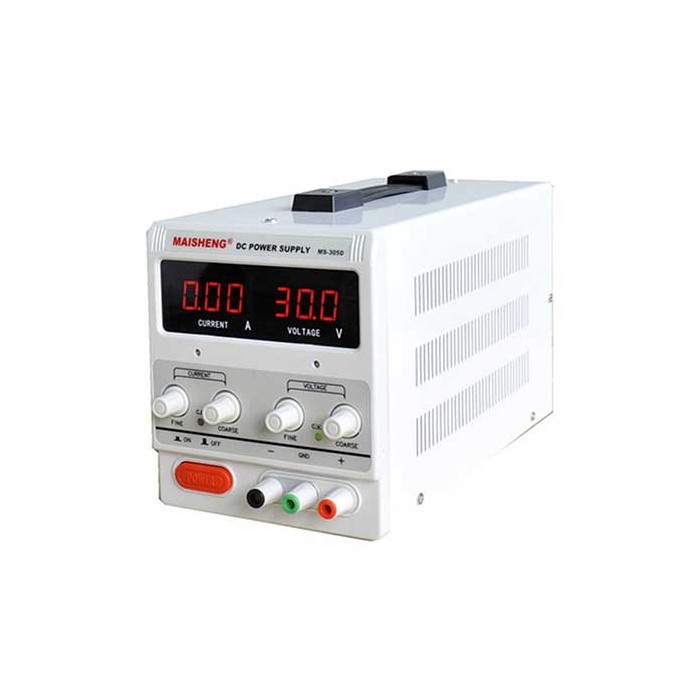

MAISHENG Adjustable Power Supply is a laboratory power supply designed for adjustable DC output and stable operation. It supports constant voltage and constant current modes and provides a reliable output for test and adjustment work. The unit includes protection functions for safer use during operation. A steel chassis and temperature-controlled fan support long working sessions. This adjustable power supply is built for applications that require precise voltage and current control.
Features of MAISHENG Adjustable Power Supply
- Steel chassis
- Constant voltage mode
- Constant current mode
- Over voltage protection
- Over current protection
- Over temperature protection
- 24-hour full load operation
- PWM switching
- Temperature-controlled fan cooling
Specifications of MAISHENG Adjustable Power Supply
- Model: MS3010D
- Input Voltage: 220V 50Hz / 110v 60Hz
- Output Voltage: 0-30V
- Output Current: 0-10A
- Output Accuracy: 0.1V - 0.1A
- Display Accuracy: ±1% ±1
- Voltage Stability: ≤0.05% +1mV
- Current Stability: ≤0.1% +10mA
- Load Stability: CV ≤0.1% +1mV
- Load Stability: CC ≤0.1% +10mA
- Noise and Ripple: CV ≤10mV (RMS)
- Noise and Ripple: CC ≤20mA (RMS)
- Working Temperature: 10- ~ 40 ℃
- Storage Temperature: 20- ~ 80 ℃
- Working Humidity: Less than 80%
- Dimensions: 260x125x155mm
How to Use MAISHENG Adjustable Power Supply
- Connect the unit to the specified AC input.
- Set the required output voltage and output current.
- Select constant voltage or constant current mode as needed.
- Monitor the output during use.
More Info
- Coarse and fine adjustment is provided for voltage and current control.
- The fan is controlled by temperature.
- The unit uses PWM switching pre-regulation and MOS linear adjustment mode.
- The chassis includes a handle for easy handling.
