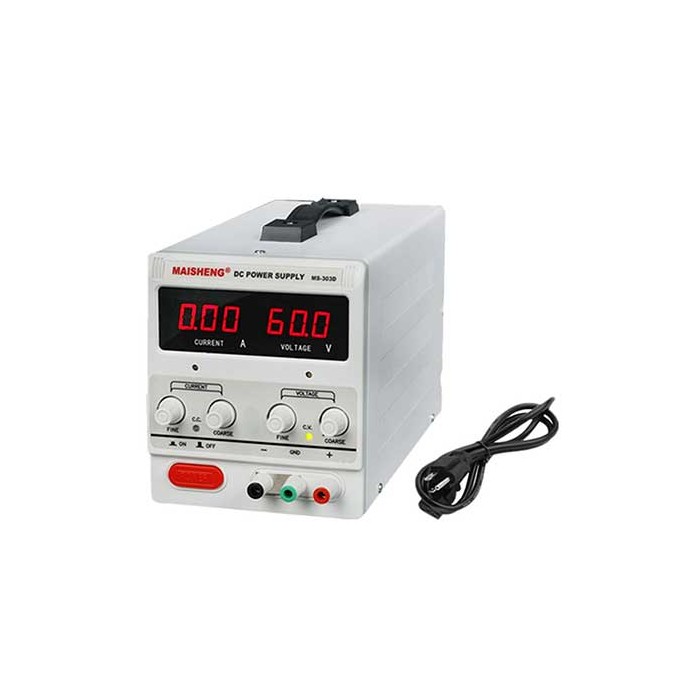

MAISHENG Adjustable Power Supply - 60V, 5A
|+10 4 % $33.12|
|+25 6 % $32.43|
|+50 8 % $31.74|
|+100 10 % $31.05|
|+300 12 % $30.36|
Thicker steel chassis, beautiful and durable. handle for easy handling.In order to more precise the values of the voltage and current, it was deign coarse and fine adjustment.It can automatic conversion with Constant voltage and constant current, so it can not only be used as constant voltage supply but also can be used as constant current power supply.Protection: over voltage (OVP), over current protection (OCP), temperature protection (OTP).Reasonable Circuit designed, key components are imported, can work for 24-hour full load.PWM switching pre-regulator, MOS linear adjustment mode, high efficiency, energy saving and environmental protection.Intelligent fan controlled by temperature.
Industrial products aging testing for DC motors, DC fans, car DVD, car audio, resistors, capacitors, etc.Perfectly applied to charge the batteries, it can provide constant current charging, then constant trickle charge with constant voltage, prevent overcharge, battery protection, effectively extend the battery.Inverter Industry: The problem of linear power relay stuck conversion, fast response speed, meet instantaneous change in load requirements.LED test and aging.
Voltage Input: AC 220V 50Hz
110V 60Hz (can be customized)
Voltage Output: DC 0-60V adjustable
Current Output: DC 0-5A adjustable
Resolution: voltage 0.1 V, current 0.1A
Accuracy: +/- 1% +/- 1 word
6. Voltage stability: ≤0.5% + 1mV
Current stability: ≤ 1% + 10mA
8. Load stability: CV ≤ 1% + 1mV CC ≤ 1% + 10mA
9. Ripple and Noise: CV ≤10mV (RMS) CC ≤20mA (RMS)
10. Cooling method: Intelligent fan controlled by temperature.
11.working environment: -10-40 ° c Relative humidity <80%
Storage environment: -20-80 ° C Relative humidity <80%
