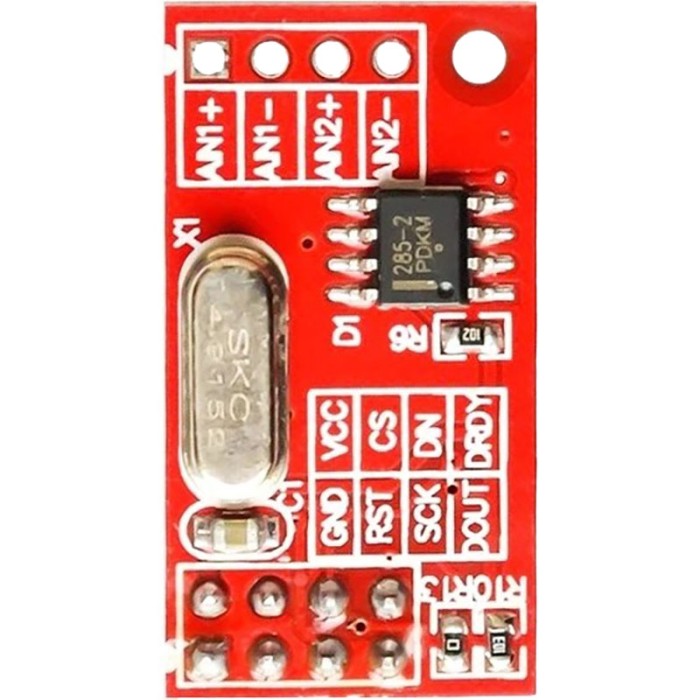

AD7705 16-Bit ADC Analog Digital Converter Module
$0.9500
In stock
SKU
MOD-10-021
Volume discounts:
- +50 4 % $0.9100
- +100 6 % $0.8900
- +300 8 % $0.8700
- +500 9 % $0.8600
- +1000 12 % $0.8400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CP2102 USB to TTL Serial Module Previous
The AD7705 is a 16-bit analog-to-digital converter (ADC) designed for low-frequency measurements, ideal for smart microcontroller or DSP-based systems. This module supports SPI communication, enabling easy integration into embedded systems. With 2 input channels, configurable gain settings, and software control over signal polarity and update rates, the AD7705 provides high-precision measurements in applications like industrial control, sensor interfacing, and more.
Specifications of AD7705 16-Bit ADC Analog Digital Converter Module
-
Chipset: AD7705
-
Input Channels: 2
-
Maximum Operating Voltage: 6.25V
-
Output Current: 5mA
-
Operating Temperature: -55°C to +125°C
-
Storage Temperature: -65°C to +150°C
-
Communication Interface: SPI
-
Dimensions: 37x12x12mm
Datasheet of AD7705 16-Bit ADC Analog Digital Converter Module
| Interface Type | SPI |
|---|---|
| Operating Voltage (V) | 3.3V, 5V |
| Operating Current (mA) | 5 |
| Operating Temp (°C) | -55°C to +125°C |
| Dimensions (mm) | 37x12x12mm |
| Interface Category | Converter |
| Output Type | SPI |
| Channels | 2-channel |
| Chipset | AD7705 |
| Voltage Range | 6.25V |
| Protocols | SPI |
| Conversion Type | Analog to Digital |
