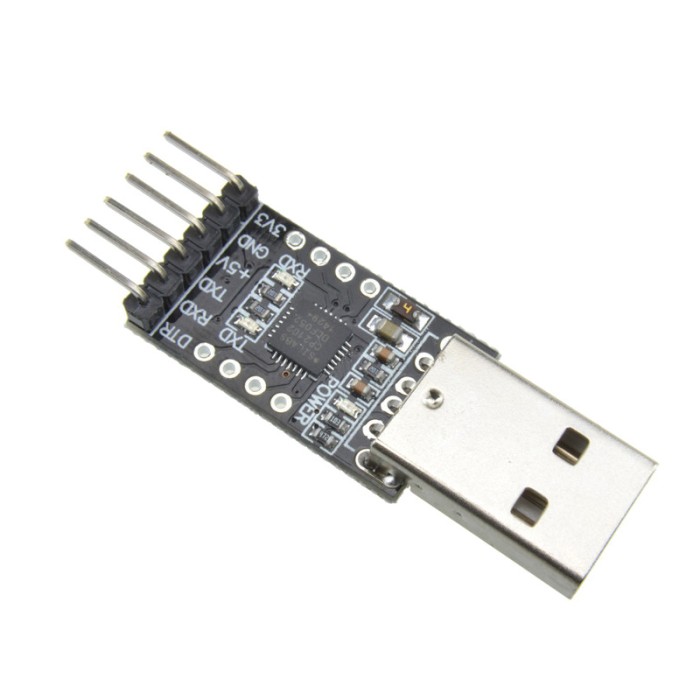

CP2102 USB to TTL Serial Module

$1.5000
In stock
SKU
MOD-10-004
Volume discounts:
  • +100 6 % $1.4100
  • +300 8 % $1.3800
  • +500 10 % $1.3500
  • +1000 12 % $1.3200
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
Ready to Use CP2102 USB to TTL UART (Serial) Convertor Module for PCBs Previous Ready to Use CP2102 USB to TTL UART (Serial) Convertor Module for PCBs

The CP2102 chip is highly integrated and has built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM and asynchronous serial data bus (UART). It supports full-function modem signals without any external USB devices. The working principle of CP2102 is similar to other USB-UART adapter circuits. The USB port of the PC is virtualized into a COM port through the driver to achieve expansion purposes.

Key features of CP2102 USB to TTL Serial Module

  1. Contains USB transceiver, no external circuitry required
  2. Contains clock circuit, no external circuitry required
  3. Contains power-on reset circuit
  4. On-chip voltage adjustment can output 3.3V voltage
  5. Comply with the requirements of USB2.0 specification.
  6. SUSPEND pin supports USB status suspend
  7. Asynchronous serial data bus compatible with all handshaking and modulator interface signals
  8. The supported data formats are data bit 8, stop bits 1, 2 and
    check bit.
  9. Contains 512-byte receive buffer and 512-byte transmit buffer
  10. Support hardware or X-ON/X-OFF

Specifications of CP2102 USB to TTL Serial Module

  1. PCB size: 26.5mm*15.6mm
  2. Adopt chip: CP2102
  3. Protection: Equipped with a self-restoring fuse, which can Effectively protect your downloader and computer USB port

  4. With 3 indicator lights: Working status is clear at a glance with power indicator light, data receiving indicator light, data sending indicator light

  5. Power outputs: 3.3V and 5V voltage
  6. Supported operating systems: Windows 98~11, MAC OS, Linux 2.4~newest versions
