RS232 to RS485 HXAD Converter module
$2.7500
In stock
SKU
MOD-10-029
Volume discounts:
- +25 4 % $2.6400
- +100 6 % $2.5800
- +300 8 % $2.5300
- +500 10 % $2.4700
- +1000 12 % $2.4200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
AD7705 16-Bit ADC Analog Digital Converter Module Previous

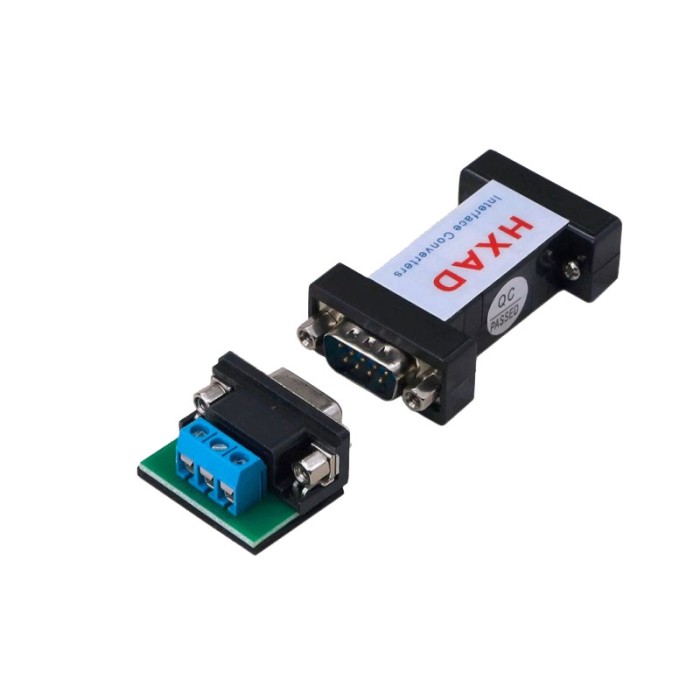

The RS232 to RS485 HXAD Converter Module is a high-performance serial port adapter designed for data transmission between RS-232 and RS-485 interfaces. The module features a DB9 female connector on the RS-232 side and a DB9 male connector on the RS-485 side. It supports transmission speeds from 300 to 115,200 bps and is capable of long-distance communication up to 1.2 miles (RS-485). The converter is ideal for industrial applications where reliable data transfer over twisted-pair or shielded lines is essential. It operates in half-duplex mode and does not require an external power source, drawing power from the RS-232 port.
Specifications of RS232 to RS485 HXAD Converter Module
-
Serial Port Standards: Compatible with EIA/TIA RS-232C and RS-485 standards
-
Working Modes: Asynchronous, half-duplex, differential transmission
-
Transmission Speed: 300-115200 bps
-
Transmission Distance:
-
RS-232: 5 meters
-
RS-485: 1.2 miles (1200 meters)
-
-
Transmission Media: Common wire, double wire, UTP, or Shielded Line
-
Operating Temperature: -10°C to 85°C
-
Humidity Range: 5% to 95% (non-condensing)
-
Power Supply: None required, draws power from RS-232 signals (TD, RTS, DTR)
-
Connectors:
-
RS-232: DB9 Female (hole-type)
-
RS-485: DB9 Male (needle-type)
-
Datasheet of RS232 to RS485 HXAD Converter Module
Datasheet: Not available.
| Interface Type | RS232, RS485 |
|---|---|
| Operating Voltage (V) | Passive (Powered via RS-232 signals) |
| Operating Temp (°C) | -10°C to 85°C |
| Mounting Type | Connector |
| Data transmission rate | 300-115200 bps |
| Standard | RS-485, EIA/TIA RS-232C |
| Direction | Bidirectional |
| Pins | 9 |
| Humidity Range | 5% to 95% (non-condensing) |
| Range (m) | RS-232 up to 5 meters, RS-485 up to 1200 meters (1.2 miles) |
