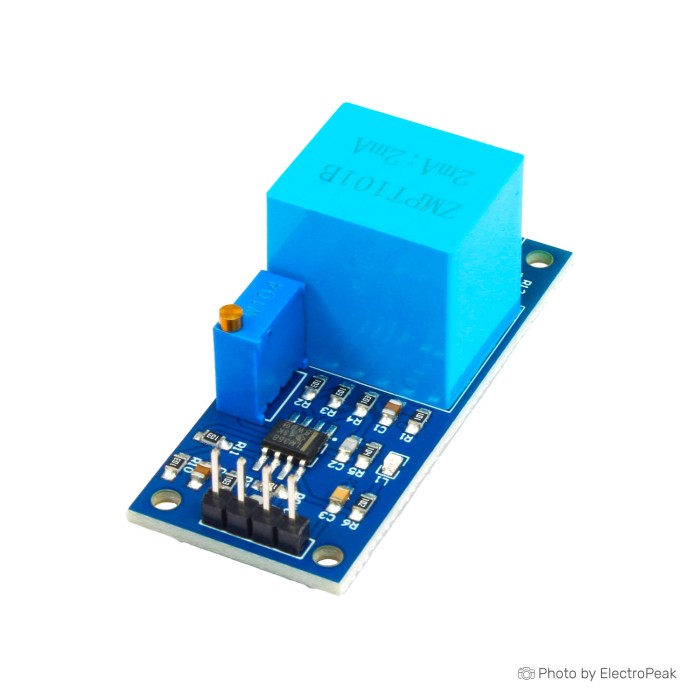

ZMPT101B 250V AC Voltage Sensor Module
$1.0100
In stock
SKU
SEN-04-001
Volume discounts:
- +50 3 % $0.9800
- +100 5 % $0.9600
- +300 7 % $0.9400
- +500 8 % $0.9300
- +1000 10 % $0.9100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZMCT103C 5A AC Current Transformer Sensor Module Previous
The ZMPT101B 250V AC Voltage Sensor Module is a single-phase AC voltage sensor module for Arduino applications. It is designed for measuring AC mains voltage up to 250 volts. The module includes a multi-turn potentiometer for analog output adjustment. It can also be used with Raspberry Pi when an external ADC is used. A 100pF polyester capacitor can be connected in series to the OUT terminal to filter the DC component in the waveform.
Features of ZMPT101B 250V AC Voltage Sensor Module
- Single-phase voltage sensing
- Measures AC voltage up to 250 volts
- Analog output
- Calibration potentiometer included
- Based on the ZMPT101B chip
- 2.54 mm pin headers
- Screw terminals included
Specifications of ZMPT101B 250V AC Voltage Sensor Module
- Dimensions: 50x20x21.5 mm
- Supply voltage: 5 volts
- Output type: Analog
- Detection range: up to 250 volts
- Calibration potentiometer: Yes
- Chip: ZMPT101B
- Pin headers: 2.54 mm
- Screw terminals
- Operating temperature: -40°C to 85°C
- Pin header connections: 5V input, voltage output, GND
- Screw terminal connection: Voltage input
How to Use ZMPT101B 250V AC Voltage Sensor Module
- Connect 5V, voltage output, and GND to the pin header.
- Connect the AC voltage input to the screw terminal.
- Adjust the calibration potentiometer as needed.
- Use an Arduino or an external ADC with Raspberry Pi to read the analog output.
More Info
- A 100pF polyester capacitor may be connected in series to the OUT terminal.
- It can be used for sensing, measuring, and equipment protection applications.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 50x20x21.5 mm |
| Mounting Type | THT |
| Output Type | Analog Voltage |
| Voltage Range (V) | Up to 250V |
| Material | PCB |
| Model | ZMPT101B |
| Channels | 1-channel |
| Display Type | None |
| Parameters | Voltage |
