ZMCT103C 5A AC Current Transformer Sensor Module
$1.0000
In stock
SKU
SEN-04-006
Volume discounts:
- +50 4 % $0.9600
- +100 6 % $0.9400
- +300 8 % $0.9200
- +500 10 % $0.9000
- +1000 13 % $0.8700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Current Shunt Resistor - 100A Previous

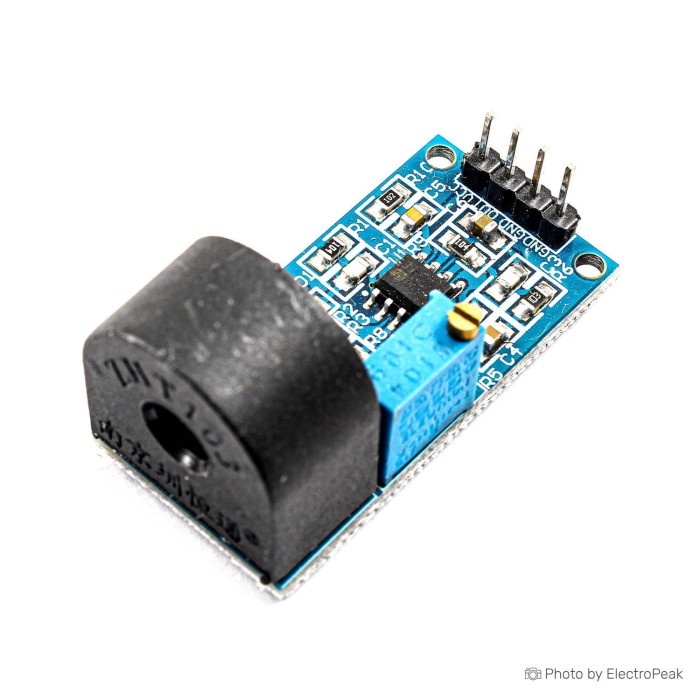

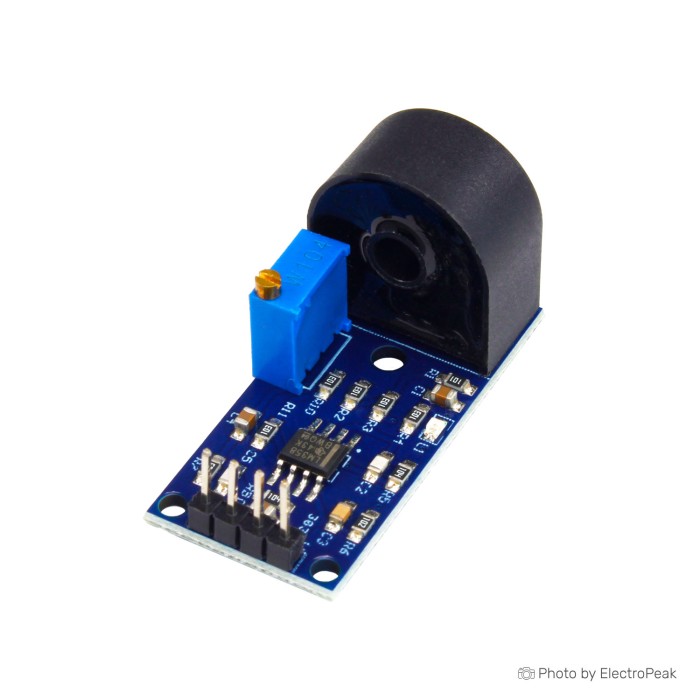

The ZMCT103C 5A AC Current Transformer Sensor Module is a compact current measurement module for AC current sensing. It uses a current transformer to detect the current flowing through a circuit and convert it into a voltage signal for microcontrollers and other measurement systems. The module is designed for electrical monitoring, current measurement, and energy control projects. It provides an analog output and includes a calibration potentiometer for adjustment.
Features of ZMCT103C 5A AC Current Transformer Sensor Module
- AC current measurement
- Analog output
- Calibration potentiometer
- Current transformer sensing
- Compact module design
Specifications of ZMCT103C 5A AC Current Transformer Sensor Module
- Model: ZMCT103C
- Measured current range: 0 to 5A AC
- Working voltage: 5V DC
- Transformation ratio: 2000:1
- Calibration potentiometer: Included
- Dimensions: 18.5x38mm
- Output type: Analog
- Operating temperature: -25 to 70 degrees Celsius
How to Use ZMCT103C 5A AC Current Transformer Sensor Module
- Connect the module to a 5V DC supply.
- Route the AC current circuit through the sensing path.
- Read the analog output with a microcontroller or measurement system.
- Adjust the calibration potentiometer as needed.
More Info
- Suitable for electronics and current monitoring projects.
- Uses a high-precision current transformer structure.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -25 to 70 °C |
| Dimensions (mm) | 18.5x38mm |
| Mounting Type | THT |
| Output Type | Analog Voltage |
| Current Range (A) | 0 to 5A AC |
| Model | ZMCT103C |
| Turns Ratio | 2000:1 |
| Channels | 1-channel |
| Display Type | None |
| Parameters | AC Current |
