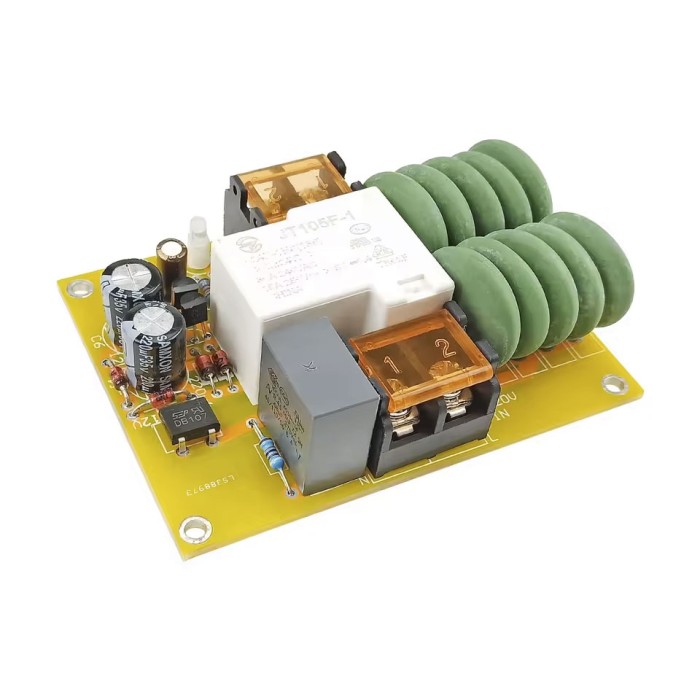

AC 220V 5000W Soft Start Module
$7.5000
In stock
SKU
MTR-10-003
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
AC 220V 2000W Soft Start Module with Anti-Shock and Temp Control
Previous
The AC 220V 5000W Soft Start Module is designed to limit high inrush current during power-up, protecting equipment and extending switch life. With a 30A relay and four thermistors, it's ideal for high-power amplifiers and machines with high startup current. Easy to install, it requires no auxiliary power supply.
Specifications of AC 220V 5000W Soft Start Module
- Input Voltage: AC 220V
- Maximum Load Power: 5000W
- Relay: 30A high-current relay
- Thermistors: 4 high-power NTC thermistors
- PCB Thickness: 2mm with 2OZ copper layer
- Terminal Block Pitch: 9.5mm (supports up to 30A)
- Components: Includes AV capacitors, discharge resistors, diodes, varistors
- Operating Voltage: AC 220V
- Operating Current: Max 30A
- Dimensions: 84x63x40mm
How to use of AC 220V 5000W Soft Start Module
- Connect the power input to the input terminal (use a switch before it).
- Connect the load to the output terminal.
- When powered on, the thermistors limit inrush current for ~3 seconds.
- After ~3 seconds, the relay bypasses the thermistors, allowing full current to flow directly to the load.
Datasheet of AC 220V 2000W Soft Start Module
