AC 220V 2000W Soft Start Module
$5.5000
In stock
SKU
MTR-10-004
Volume discounts:
- +25 4 % $5.2700
- +50 6 % $5.1600
- +100 8 % $5.0400
- +300 10 % $4.9300
- +500 13 % $4.8100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
AC 220V 5000W Soft Start Module Previous

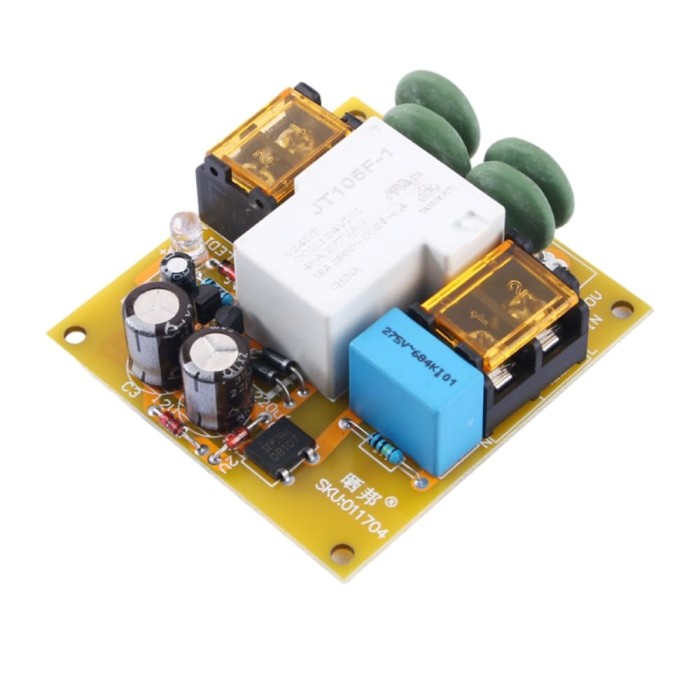

The AC 220V 2000W Soft Start Module limits high inrush current during power-up and helps protect connected equipment. It is designed for AC 220V operation and a maximum load power of 2000W. A 30A high-current relay and 4 high-power NTC thermistors support soft start control. The module requires no auxiliary power supply and is easy to install. It is suitable for applications with high startup current and demanding load conditions.
Features of AC 220V 2000W Soft Start Module
- Inrush current limiting
- 30A high-current relay
- 4 high-power NTC thermistors
- No auxiliary power supply required
- Easy installation
Specifications of AC 220V 2000W Soft Start Module
- Input Voltage: AC 220V
- Maximum Load Power: 2000W
- Relay: 30A high-current relay
- Thermistors: 4 high-power NTC thermistors
- PCB Thickness: 2mm with 2OZ copper layer
- Terminal Block Pitch: 9.5mm (supports up to 30A)
- Components: AV capacitors
- Components: discharge resistors
- Components: diodes
- Components: varistors
- Operating Voltage: AC 220V
- Operating Current: Max 30A
- Dimensions: 66x62x40mm
How to Use AC 220V 2000W Soft Start Module
- Connect the power input to the input terminal.
- Use a switch before the input terminal.
- Connect the load to the output terminal.
- Power on the system to start soft start operation.
More Info
- The thermistors limit inrush current for approximately 3 seconds.
- After approximately 3 seconds, the relay bypasses the thermistors.
