AC 220V 2000W Soft Start Module with Anti-Shock and Temp Control
$11.5000
In stock
SKU
MTR-10-002
Volume discounts:
- +25 4 % $11.0400
- +50 6 % $10.8100
- +100 8 % $10.5700
- +300 10 % $10.3400
- +500 12 % $10.1100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

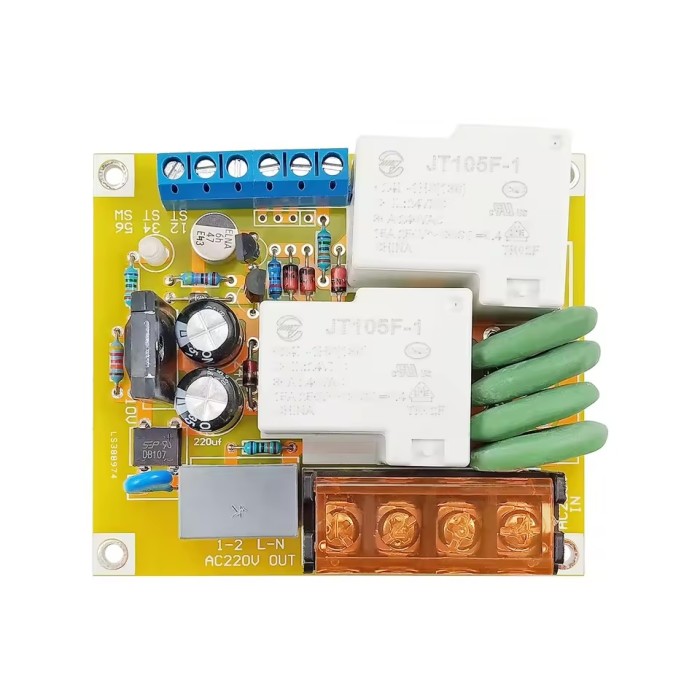

AC 220V 2000W Soft Start Module with Anti-Shock and Temp Control is designed for high-power Class A amplifiers and transformers. It helps reduce surge current during startup and supports stable operation. The module includes 30A relays, delayed start, micro-current DC control, and over-temperature protection. It is built for interference-free performance with low noise on the control line.
Features of AC 220V 2000W Soft Start Module - Anti-Shock, Temp Control
- Anti-shock startup control
- Temperature control support
- Delayed start function
- 30A relay switching
- Micro-current DC control
- Over-temperature protection
- Low-noise operation
Specifications of AC 220V 2000W Soft Start Module - Anti-Shock, Temp Control
- Rated Power: 2000W
- Relay Rated Current: 30A
- Control: Micro-current DC control
- Standby Current: Less than 0.2mA
- Protection: Dual-channel over-temperature protection
- Startup Delay: About 3 seconds
- Input/Output Interface: Terminal block
- Terminal Pitch: 9.5mm
- Maximum Current: 30A
- Interference: No transformer leakage
- Interference: No AC noise on control line
- Operating Voltage: AC 220V
- Operating Current: Max 30A
- Dimensions: ---
How to Use AC 220V 2000W Soft Start Module - Anti-Shock, Temp Control
- Connect AC 220V to the input terminal labeled IN.
- Use a switch to short the control terminal.
- Allow the first relay to activate and power through the thermistor.
- After about 3 seconds, the main 30A relay engages and bypasses the thermistor.
- Maintain at least 8mm clearance from the chassis during installation.
More Info
- Designed for high-power amplifiers and transformers
- Datasheet image included
