85C1 DC Voltmeter
SAVE
As low as $1.7500
In stock
Only %1 left
SKU
SEN-04-068
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
85L1 AC Voltmeter Previous

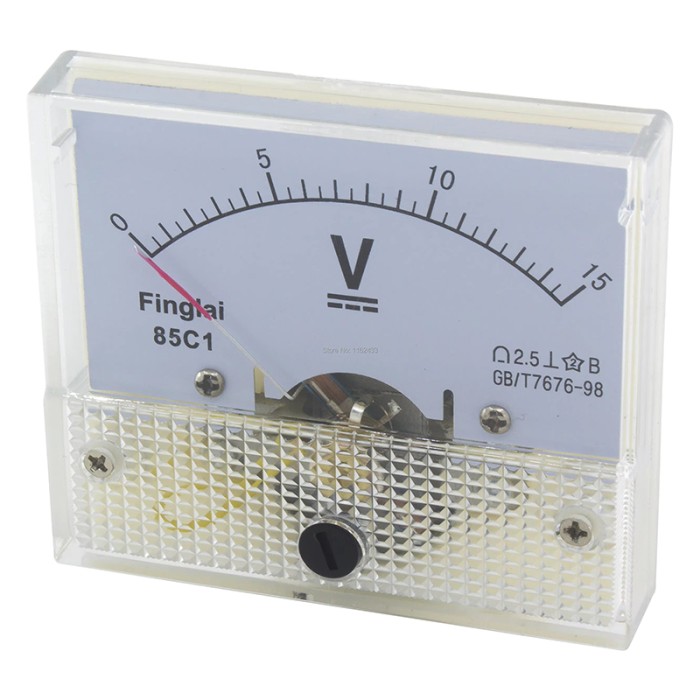

The 85C1 DC Voltmeter is a high-precision analog instrument designed for measuring DC voltage in various applications. It features a clear analog display with a pointer that ensures accurate and quick readings. The voltmeter is built to withstand tough conditions, including mechanical shocks and environmental variations, making it suitable for both industrial and educational settings. With its compact design and easy installation into control panels, the 85C1 series is versatile for many applications that require reliable DC voltage measurement.
Specifications of 85C1 DC Voltmeter
-
Model Number: 85C1 series
-
Accuracy Level: 1.5/2.5 level
-
External Dimensions: 64 x 56 x 60 mm
-
Perforation Dimensions: 49 x 10 mm
-
Matched Shunt: FL-2
-
Resistance to Mechanical Forces: Can withstand 30 m/s² wind; Impact frequency 80-120 times/min, 2-hour transport bumping
-
Work Position: Vertical
-
Operating Temperature: -20 to 50 °C
-
Operating Humidity: 85% RH max, non-condensing
Development Resources of 85C1 DC Voltmeter
| Interface Type | Analog |
|---|---|
| Operating Temp (°C) | -20 to 50 °C |
| Dimensions (mm) | 64 x 56 x 60 mm |
| Mounting Type | Panel Mount |
| Accuracy | 1.5/2.5 level |
| Material | Plastic |
| Model | 85C1 series |
| Channels | 1-channel |
| Display Type | Analog |
| Parameters | DC Voltage |
| Humidity Range | 85% RH max, non-condensing |
