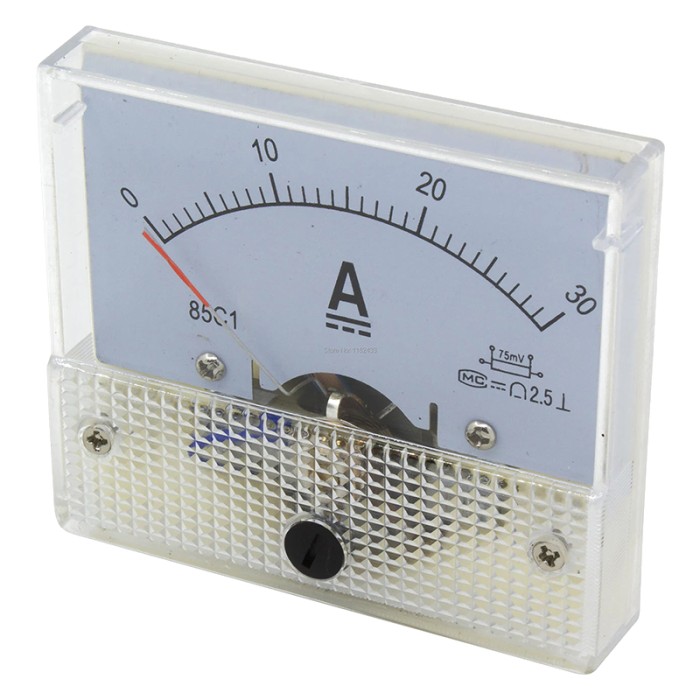

85C1 DC Ammeter

[SEN-04-069]
Shop with confidence Learn More
Availability: Out of stock
SKU
SEN-04-069

The 85C1 DC Ammeter is a reliable analog measuring device designed to monitor direct current in various applications. Featuring a clear dial and pointer for easy reading, this ammeter is suitable for both educational and industrial environments. With its robust design, the 85C1 series can withstand harsh mechanical forces and environmental conditions, making it ideal for use in demanding settings. Its vertical work position and accurate measurement capabilities ensure dependable performance, while its compact size allows for easy installation in panels and control systems.

Specifications of 85C1 DC Ammeter

  • Model Number: 85C1 series

  • Accuracy Level: 1.5/2.5 level

  • External Dimensions: 64 x 56 x 60 mm

  • Perforation Dimensions: 49 x 10 mm

  • Matched Shunt: FL-2

  • Resistance to Mechanical Forces: Can withstand 30 m/s² wind; Impact frequency 80-120 times/min, 2-hour transport bumping

  • Work Position: Vertical

  • Operating Temperature: -20 to 50 °C

  • Operating Humidity: 85% RH max, non-condensing
