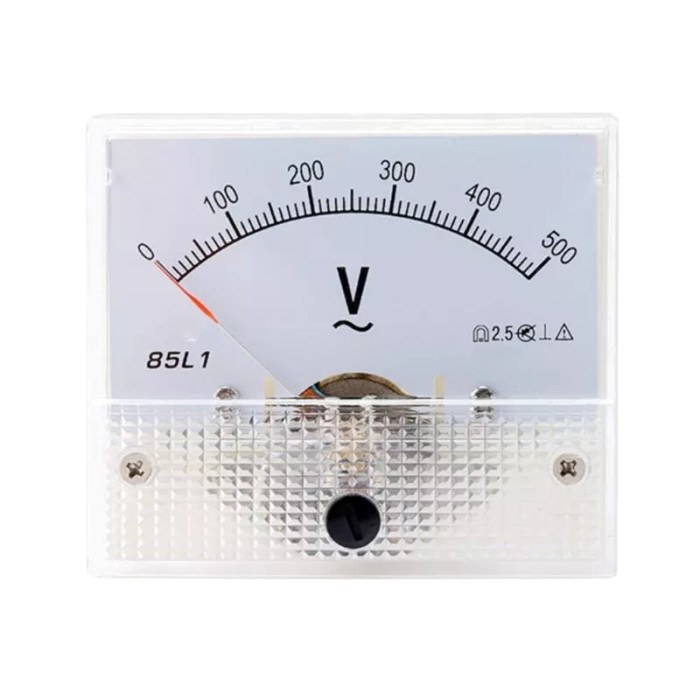

85L1 AC Voltmeter

The 85C1 AC Voltmeter is a high-precision analog instrument designed for measuring AC voltage in various applications. It features a clear analog display with a pointer that ensures accurate and quick readings. The voltmeter is built to withstand tough conditions, including mechanical shocks and environmental variations, making it suitable for both industrial and educational settings. With its compact design and easy installation into control panels, the 85C1 series is versatile for many applications that require reliable AC voltage measurement.

Specifications of 85C1 AC Voltmeter

• Model Number: 85C1 series

• Accuracy Level: 1.5/2.5 level

• External Dimensions: 64 x 56 x 60 mm

• Perforation Dimensions: 49 x 10 mm

• Matched Shunt: FL-2

• Resistance to Mechanical Forces: Can withstand 30 m/s² wind; Impact frequency 80-120 times/min, 2-hour transport bumping

• Work Position: Vertical

• Operating Temperature: -20 to 50 °C

• Operating Humidity: 85% RH max, non-condensing

Development Resources of 85C1 AC Voltmeter

• 85C1 AC Voltmeter Resources
