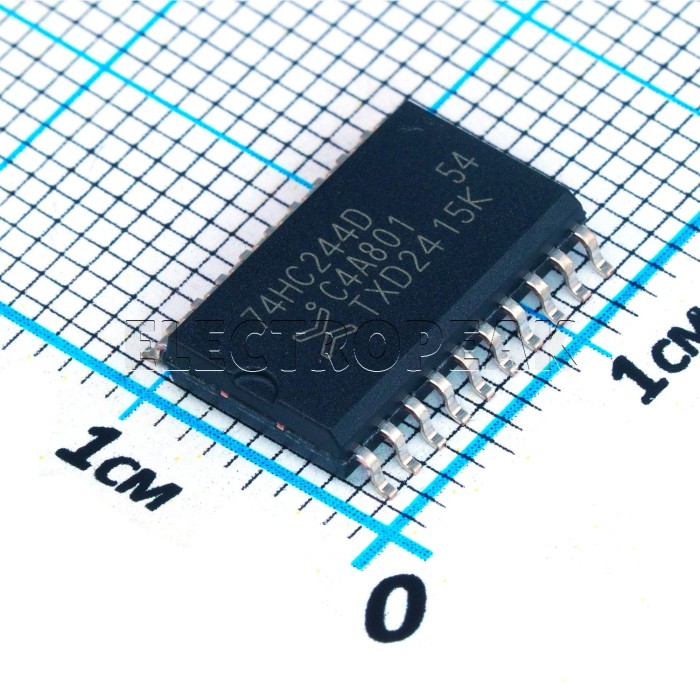

74HC244D (NXP), Buffer & Line Driver IC, SOW-20
$0.2100
In stock
SKU
S1-0100
Volume discounts:
- +100 5 % $0.2000
- +1000 10 % $0.1900
- +10000 14 % $0.1800
74HC244D (NXP), Buffer & Line Driver IC, SOW-20 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CD4094BM, Counter Shift Register, SOP-16 Previous
The 74HC244D (NXP) Octal Buffer & Line Driver IC is an octal buffer in an SOW-20 package. It provides eight inputs and eight outputs for digital signal amplification and power boosting. This IC is suitable for electronic and digital system designs that require buffer and line driver functionality. The 74HC244D is specified with a wide supply voltage range and defined logic-level thresholds.
Features of 74HC244D (NXP) Octal Buffer & Line Driver IC
- Octal buffer design
- Eight inputs
- Eight outputs
- SOW-20 package
- Signal amplification support
- Digital line driver function
Specifications of 74HC244D (NXP) Octal Buffer & Line Driver IC
- Supply Voltage: 2.0V to 6.0V
- Number of Inputs: 8
- Number of Outputs: 8
- Low Logic Voltage: 0.5V to 1.5V
- High Logic Voltage: 1.5V to 4.5V
- Output Current: 6 mA at high and low logic levels
- Operating Temperature Range: -40°C to 85°C
- Package: SOW-20
How to Use 74HC244D (NXP) Octal Buffer & Line Driver IC
- Connect the IC within the 2.0V to 6.0V supply voltage range.
- Use the eight inputs and eight outputs according to the digital circuit layout.
- Keep operation within the -40°C to 85°C temperature range.
More Info
- Designed as an octal buffer and line driver IC.
- Package type is SOW-20.
| Package | SOW-20 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Polarity | Non-Inverting Type |
| Mounting Type | SMD/SMT |
| Components - Type | Buffers & Line Drivers |
