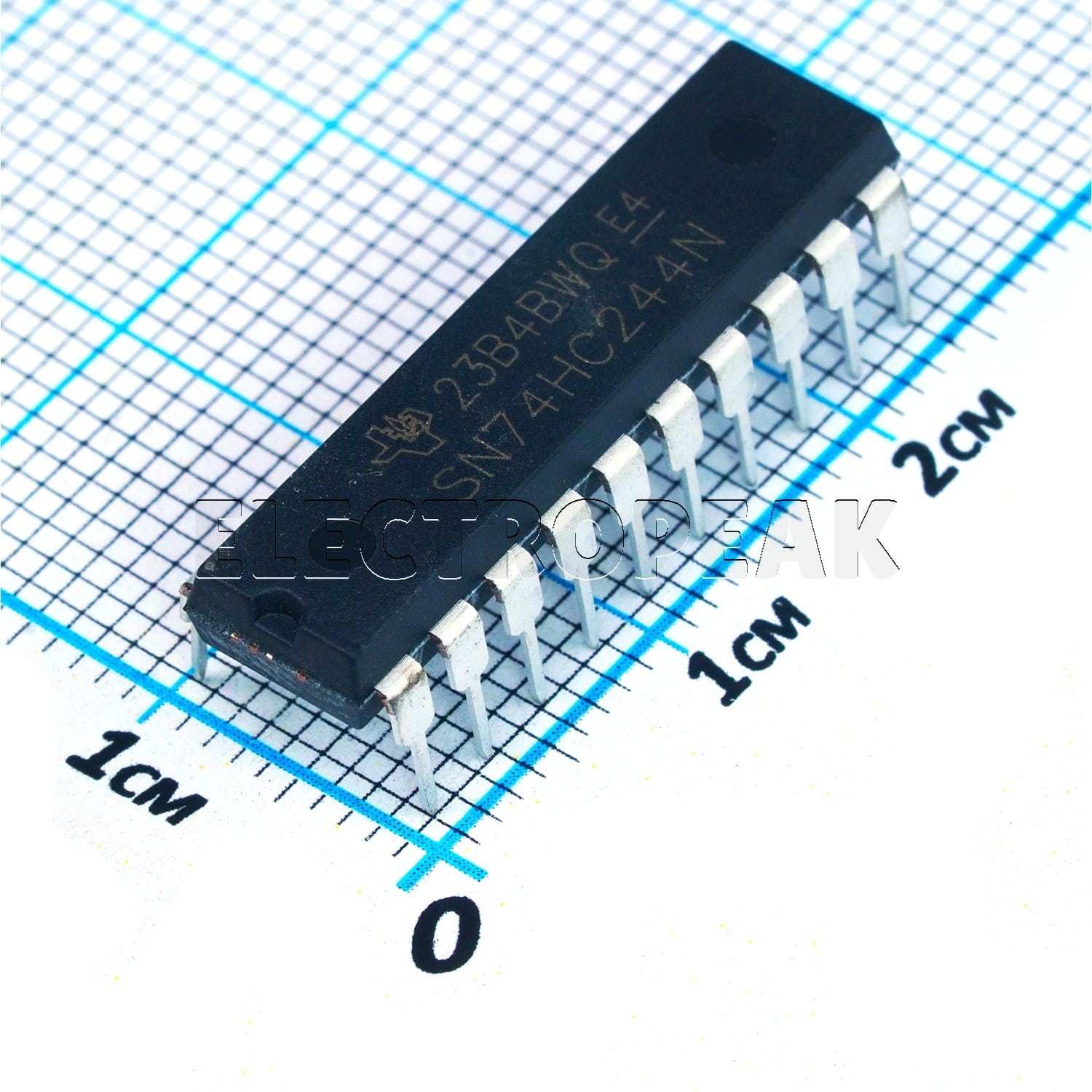

SN74HC244N, Buffer & Line Driver IC, DIP-20
$0.2900
In stock
SKU
S1-0101
Volume discounts:
- +100 3 % $0.2800
- +500 7 % $0.2700
- +5000 10 % $0.2600
SN74HC244N, Buffer & Line Driver IC, DIP-20 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The SN74HC244N Buffer & Line Driver IC is a non-inverting octal buffer in a DIP-20 package. It is a CMOS device designed to amplify digital signals and support power and speed in digital systems. The SN74HC244N is suitable for applications that require 8 inputs and 8 outputs in a compact through-hole package. Its electrical and operating limits are clearly defined for straightforward selection and integration.
Features of SN74HC244N Buffer & Line Driver IC
- Non-inverting octal buffer
- CMOS technology
- DIP-20 package
- 8 inputs
- 8 outputs
Specifications of SN74HC244N Buffer & Line Driver IC
- Supply Voltage: 2.0V to 6.0V
- Number of Inputs: 8
- Number of Outputs: 8
- Low Logic Voltage: 0.5V to 1.5V
- High Logic Voltage: 1.5V to 4.5V
- Output Current: 7.8 mA at high and low logic levels
- Operating Temperature Range: -40°C to 85°C
- Package: DIP-20
How to Use SN74HC244N Buffer & Line Driver IC
- Place the IC in a circuit that matches the DIP-20 package.
- Apply a supply voltage within the 2.0V to 6.0V range.
- Connect the 8 inputs and 8 outputs as required by the circuit.
More Info
- Non-inverting signal buffer
- Designed for digital systems
| Package | DIP-20 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| Polarity | Non-Inverting Type |
| Mounting Type | Through Hole |
| Components - Type | Buffers & Line Drivers |
