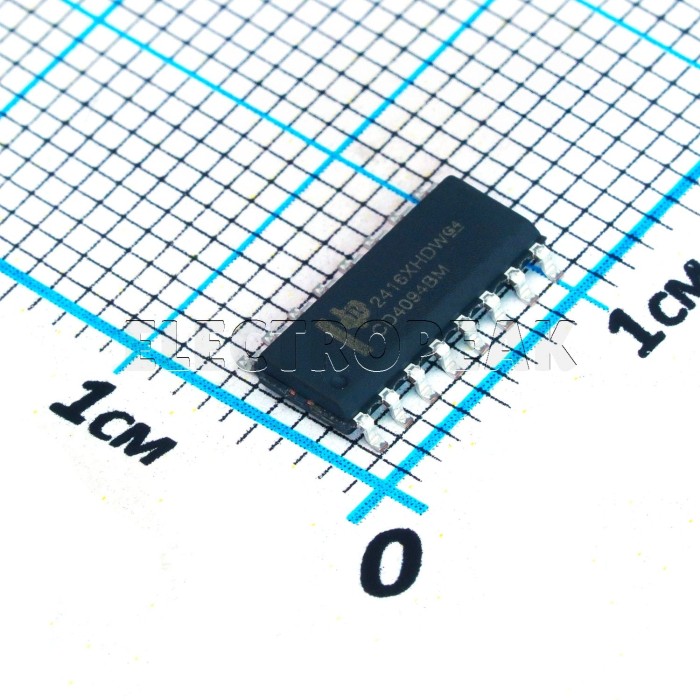

CD4094BM, Counter Shift Register, SOP-16
$0.0520
In stock
SKU
S1-0099
Volume discounts:
- +100 4 % $0.0500
- +500 6 % $0.0490
- +1000 8 % $0.0480
- +5000 10 % $0.0470
- +10000 12 % $0.0460
CD4094BM, Counter Shift Register, SOP-16 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CD4049BE, Counter Shift Register, PDIP-16 Previous
The CD4094BM is an 8-bit shift register in an SOP-16 package. This CMOS IC is used for converting serial data to parallel data and vice versa in digital systems. It is designed for applications that require a shift register in a compact SOP-16 package. The CD4094BM supports a wide supply voltage range and defined logic-level operation.
Features of CD4094BM 8-Bit Shift Register
- 8-bit shift register
- CMOS construction
- Serial-to-parallel conversion
- Parallel-to-serial conversion
- SOP-16 package
Specifications of CD4094BM 8-Bit Shift Register
- Supply Voltage: 3.0V to 18.0V
- Number of Bits: 8
- Low Logic Voltage: 0.9V to 4.0V
- High Logic Voltage: 3.6V to 10.8V
- Input Current: 1 µA at 18V
- Output Current: 3.4 mA at high and low logic levels
- Operating Temperature Range: -55°C to 125°C
- Package: SOP-16
How to Use CD4094BM 8-Bit Shift Register
- Install the CD4094BM in the circuit using the SOP-16 package layout.
- Apply a supply voltage within the 3.0V to 18.0V range.
- Use the device for serial and parallel data conversion in digital systems.
More Info
- Suitable for digital system designs that use shift register logic.
- Uses an SOP-16 package format.
| Package | SOP-16 |
|---|---|
| Mounting Type | SMD/SMT |
| Components - Type | Counter Shift Registers |
