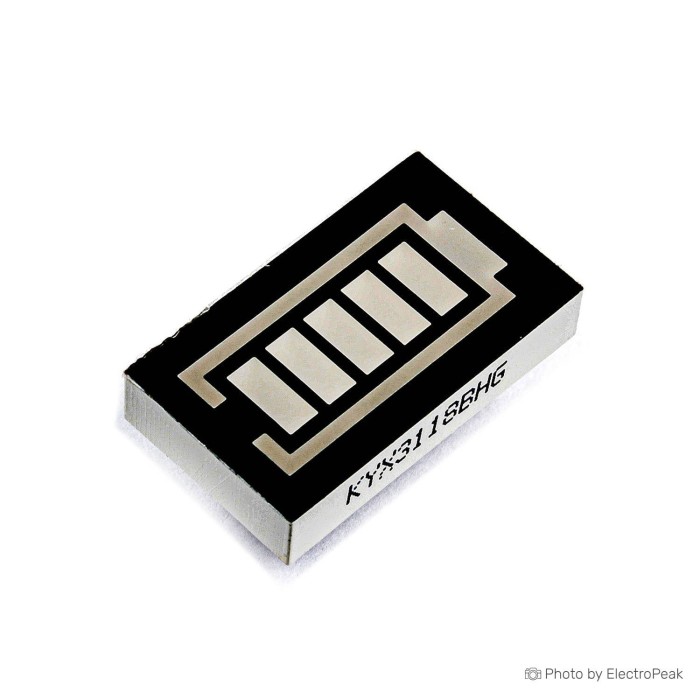

Bi-Color 5-Bars Battery Bar Graph LED Display
$0.4800
In stock
SKU
ELC-16-004
Volume discounts:
- +100 4 % $0.4600
- +500 6 % $0.4500
- +1000 8 % $0.4400
- +5000 10 % $0.4300
- +10000 13 % $0.4200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Bi-Color 4-Bars Battery Bar Graph LED Display Previous
Bi-Color 5-Bars Battery Bar Graph LED Display is an LED bar graph for electronic circuits and microcontrollers. It can be used to display the remaining battery capacity. It is also suitable for displaying digital IC output values. The bi-color design provides a clear visual status indication. The Bi-Color 5-Bars Battery Bar Graph LED Display uses a simple connection method similar to five separate LEDs on five output pins.
Features of Bi-Color 5-Bars Battery Bar Graph LED Display
- LED bar graph display
- Bi-color battery model
- 5-segment indication
- Simple circuit connection
- Common cathode design
Specifications of Bi-Color 5-Bars Battery Bar Graph LED Display
- Operating voltage: approximately 2.2V DC
- Current: 25 mA
- 5 segments
- 8 pins
- Battery model: two colors
- Size: 31x18 mm
- Common cathode
How to Use Bi-Color 5-Bars Battery Bar Graph LED Display
- Connect the display to the electronic circuit or microcontroller.
- Drive the five segments through the available output pins.
- Use the display to show battery capacity or digital output levels.
More Info
- Suitable for audio equipment
- Suitable for instrument panels
- Suitable for digital reading displays
- Suitable for signal strength indication
- Suitable for power status indication
