10 Segment 4 Color Battery Light Bar Graph LED Display

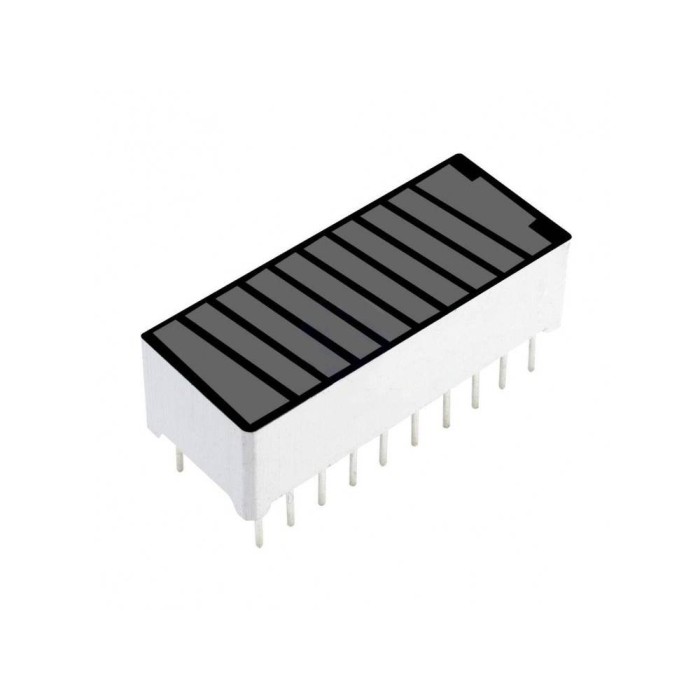

The 10 Segment 4 Color Battery Light Bar Graph LED Display is a battery level and power display module. It uses 10 LED segments for clear visual indication. The display combines red, yellow, green, and blue segments in one compact component. It is suitable for battery indicators and other power or signal display applications.

Features of 10 Segment 4 Color Battery Light Bar Graph LED Display

• 10 LED segments
• 4 color display
• Battery level indication
• Power display support
• Easy circuit connection
• Sun-readable display

Specifications of 10 Segment 4 Color Battery Light Bar Graph LED Display

• Color: red, yellow, green, blue
• Pin pitch: 2.54 mm
• Forward voltage for red: 2.5 V
• Forward voltage for yellow: 2 V
• Forward voltage for green: 2.8 V
• Forward voltage for blue: 3 V
• Current: 15 mA
• Number of segments: 10
• Number of pins: 20
• Battery model: 4 color
• Reverse voltage: 5 V

How to Use 10 Segment 4 Color Battery Light Bar Graph LED Display

1. Connect the 20 pins to the circuit.
2. Drive the segments according to the desired display level.
3. Use the lit segments to indicate battery or power status.

More Info

• LED bar graph structure.
• Suitable for electronic and instrumentation displays.
