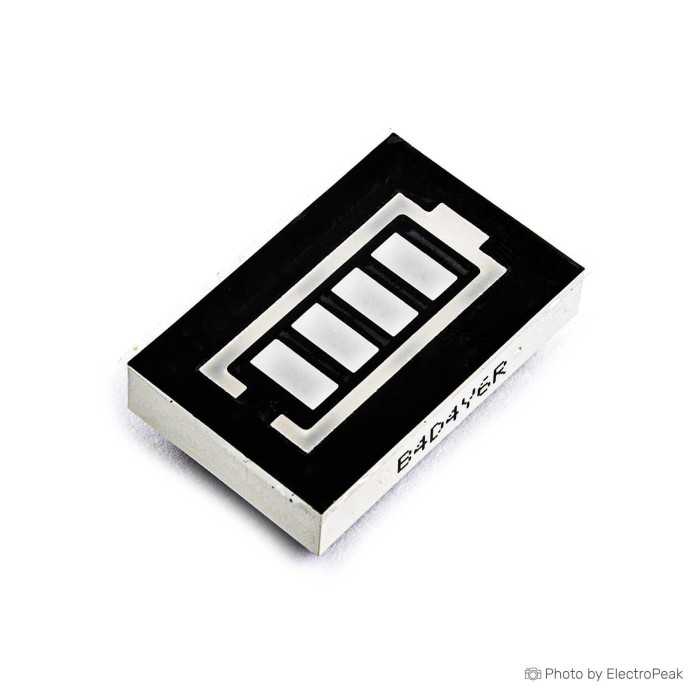

Bi-Color 4-Bars Battery Bar Graph LED Display

Bi-Color 4-Bars Battery Bar Graph LED Display is an LED array for connection with an electronic circuit or microcontroller. It is designed for battery capacity indication and general status display applications. The bi-color format supports clear visual readout in a compact LED bar graph format. This LED Bar Graph can also be used where a simple segmented display is needed. The Bi-Color 4-Bars Battery Bar Graph LED Display offers a straightforward way to present output levels and remaining battery capacity.

Features of Bi-Color 4-Bars Battery Bar Graph LED Display

• Bi-color display
• 4-segment output
• Common cathode
• Battery level indication
• LED array format

Specifications of Bi-Color 4-Bars Battery Bar Graph LED Display

• Working voltage: approximately 2.2V DC
• Current: 25mA
• 4 segments
• 8 pins
• Battery model: two colors
• Size: 31x18mm

How to Use Bi-Color 4-Bars Battery Bar Graph LED Display

1. Connect the display to your electronic circuit or microcontroller.
2. Drive the segments to show the required level or status.

More Info

• Suitable for audio equipment.
• Suitable for instrument panels.
• Suitable for digital reading displays.
• Suitable for signal strength display.
• Suitable for power status display.
