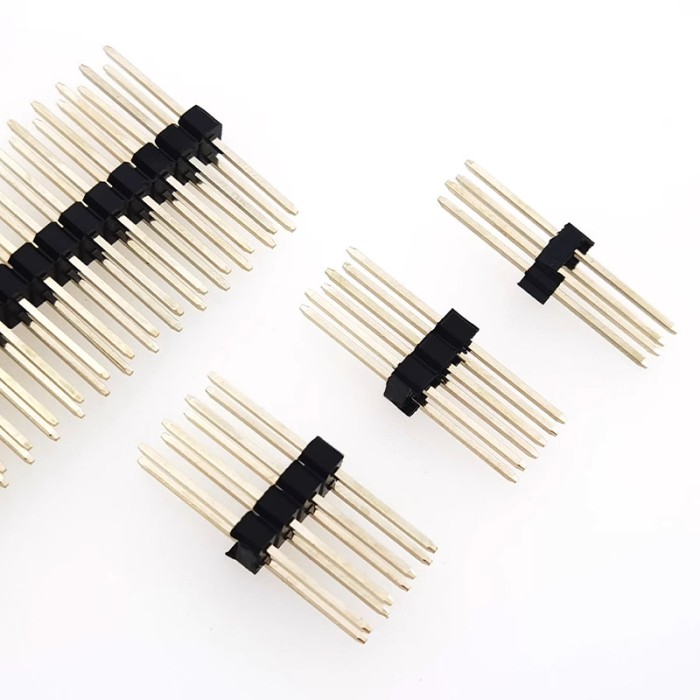

2x20 Pin Male Long Centered Header - 2.54mm Pitch

[CAB-01-214]
Volume discounts:
  • +100 7 % $2.3300
  • +300 9 % $2.2800
  • +500 11 % $2.2200
  • +1000 13 % $2.1700
Shop with confidence Learn More
Availability: 690 items
SKU
CAB-01-214
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$2.5000
2x20 Pin Male Long Centered Header - 2.54mm Pitch is available to buy in increments of 10

A long-centered male pin header is a type of electrical connector commonly used in electronic circuits and devices. It consists of a row of metal pins arranged in a linear configuration, with each pin having a long body that extends beyond the plastic housing.

The term "long-centered" refers to the positioning of the pins within the housing. In this configuration, the pins are aligned in the center of the housing, allowing for easy alignment and connection with corresponding female connectors or sockets.

Long-centered male pin headers are commonly used in various electronic applications, including printed circuit boards (PCBs), breadboards, and other prototyping platforms. They provide a convenient and versatile means of establishing electrical connections between different components, such as microcontrollers, sensors, and other electronic modules.



Specifications for 2x20 Pin Male Long Centered Header - 2.54mm Pitch:

  • ِDouble row (2*20P)
  • Pitch: 2.54mm
  • Pin length: 6.25 on each side (Total: 15mm )
  • Plastic body height: 2.5mm
