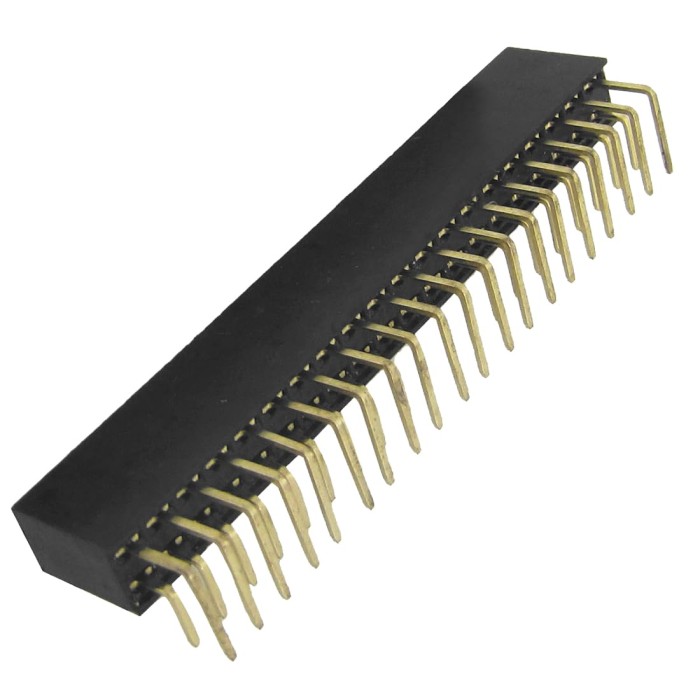

2x20 Pin Right Angle Female Header - 2.54mm Pitch
$0.2000
In stock
SKU
CAB-01-216
Volume discounts:
- +100 5 % $0.1900
- +1000 10 % $0.1800
- +10000 15 % $0.1700
2x20 Pin Right Angle Female Header - 2.54mm Pitch is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2mm Pitch Male PH Connector (Straight) Previous
The 2x20 Pin Right Angle Female Header is a 2x20-pin strip designed for right-angle connections on a 2x20 pin circuit board. It is a right-angle female header for header-based board connections. The 2.54mm pitch supports standard pin spacing. The 2x20 format provides 40 total positions. This header can be used with a 2x20-pin Dual Male Header.
Features of 2x20 Pin Right Angle Female Header - 2.54mm Pitch
- 2x20-pin strip
- Right-angle design
- Female header format
- 2.54mm pitch
- 40 total positions
Specifications of 2x20 Pin Right Angle Female Header - 2.54mm Pitch
- Product Type: Right Angle Female Header
- Pin Configuration: 2x20
- Pitch: 2.54mm
How to Use 2x20 Pin Right Angle Female Header - 2.54mm Pitch
- Align the header with the matching 2x20 pin board connection.
- Attach it to the circuit board or pair it with a compatible 2x20-pin Dual Male Header.
More Info
- Suitable for header-based board connections.
- Designed for right-angle capability.
