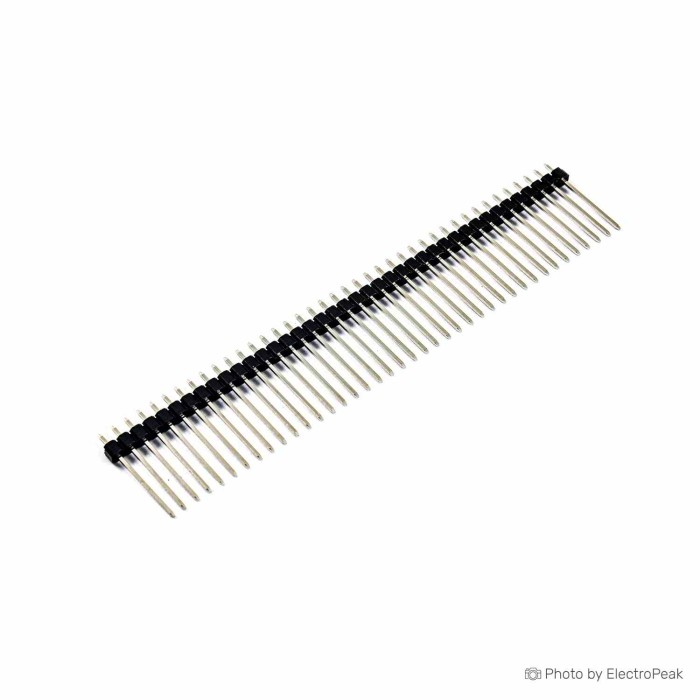

1x40 Pin Male Long Header - 2.54mm Pitch - Pack of 5

The 1x40 Pin Male Long Header with a 2.54mm pitch and a height of 21mm is an important electronic component used for establishing connections and interfaces in electronics projects, PCB designs, and prototyping. This male header features a single row of 40 pins spaced at a standard 2.54mm interval and has an extended height of 21mm, making it suitable for applications requiring additional clearance or connection height.

Specificatoins of 1x40 Pin Male Long Header - 2.54mm Pitch:

• Connector Type: Male header with 1 row of 40 pins
• Pin Pitch: 2.54mm (0.1 inches)
• Pin Configuration: 1x40 configuration, meaning a single row of 40 pins
• Mounting angle: Straight needle
• Pin Length: 21mm
• Color:Black

Features of 1x40 Pin Male Long Header - 2.54mm Pitch:

• Extended Height: The 21mm height provides additional clearance or elevated connections, making it suitable for specific applications.
• Versatile Connectivity: The 1x40 pin male long header allows for various configurations, including connections to female headers, sockets, or receptacles.
• Standard Pitch: The 2.54mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
• Usage Tip:
• Solder the 1x40 pin male long header onto a PCB to provide connection points for interfacing with other components, modules, or devices that require extra clearance or elevated connections. Ensure proper alignment and spacing during soldering.
• Caution:
• Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.

Extra Notes:

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
