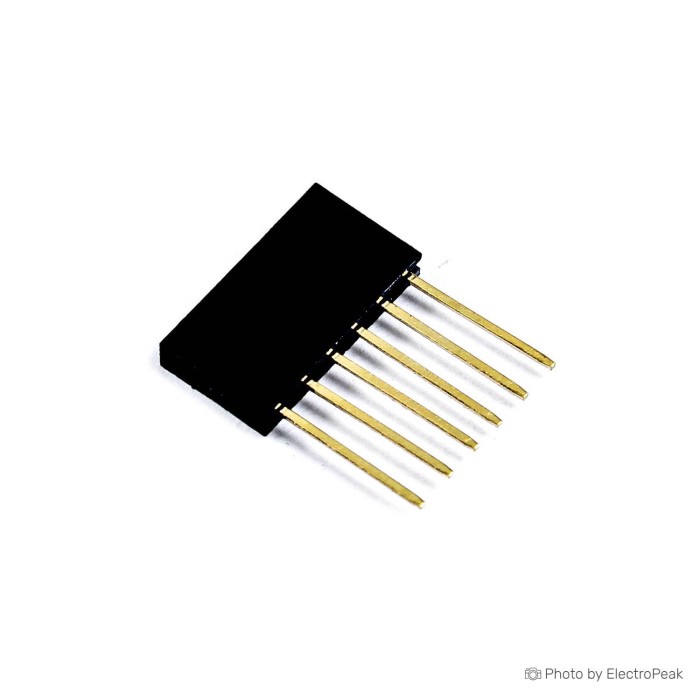

1x6 Pin Female Long Header - 2.54mm Pitch
$0.0470
In stock
SKU
CAB-01-188
Volume discounts:
- +500 4 % $0.0450
- +1000 6 % $0.0440
- +5000 9 % $0.0430
- +10000 11 % $0.0420
- +20000 13 % $0.0410
1x6 Pin Female Long Header - 2.54mm Pitch is available to buy in increments of 20
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
2x40 Pin Male Header - 2.54mm Pitch
Previous
The 1x6 Pin Female Header with a 2.54mm pitch and 11mm pin length is a versatile electronic component used for establishing connections and interfaces in electronics projects, PCB designs, and prototyping. This female header features a single row of 6 pins spaced at a standard 2.54mm interval, with extended 11mm pin length for additional clearance or connections.
Specificatoins of 1x6 Pin Female Long Header - 2.54mm Pitch0:
- Connector Type: Female header with 1 row of 6 pins
- Pin Pitch: 2.54mm (0.1 inches)
- Pin Configuration: 1x6 configuration, meaning a single row of 6 pins
- Mounting angle: Straight needle
- Pin Length: 11mm
- Color:Black
Features of 1x6 Pin Female Long Header - 2.54mm Pitch0:
- Extended Pin Length: The 6mm pin length provides extra clearance or room for connecting components, making it suitable for specific applications.
- Standard Pitch: The 2.54mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
- Customizable Configuration: Use the 1x6 pin female header for various configurations, including connections to male headers, sockets, or receptacles.
- Usage Tip:
- Solder the 1x6 pin female header onto a PCB to provide connection points for interfacing with other components, modules, or devices. Ensure proper alignment and spacing during soldering.
- Caution:
- Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.
How to Use 1x6 Pin Female Long Header - 2.54mm Pitch0:
Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
